TI-65-STS
TIROAD TI-65-STS
Product name and specification
Product
TI-65-STS
Standard
Φ153*800mm
Material
Stainless(STS)
Number
23105046
Product features
• It prevents cars from going on to sidewalks. If necessary, a car entry can be permitted momentarily.

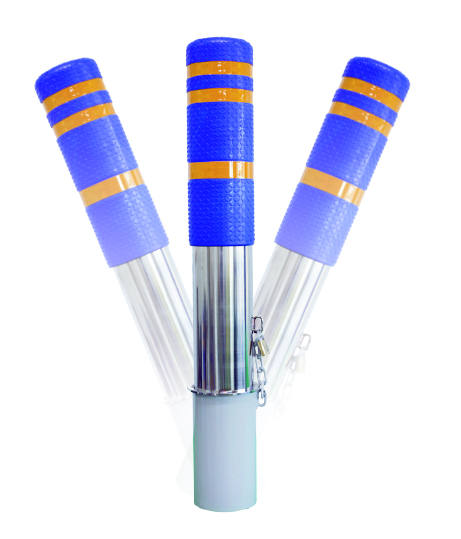

• As a flexible product made of mechanism(bolt and spring unit), it deflects about 20 degrees upon impact and absorbs shock.

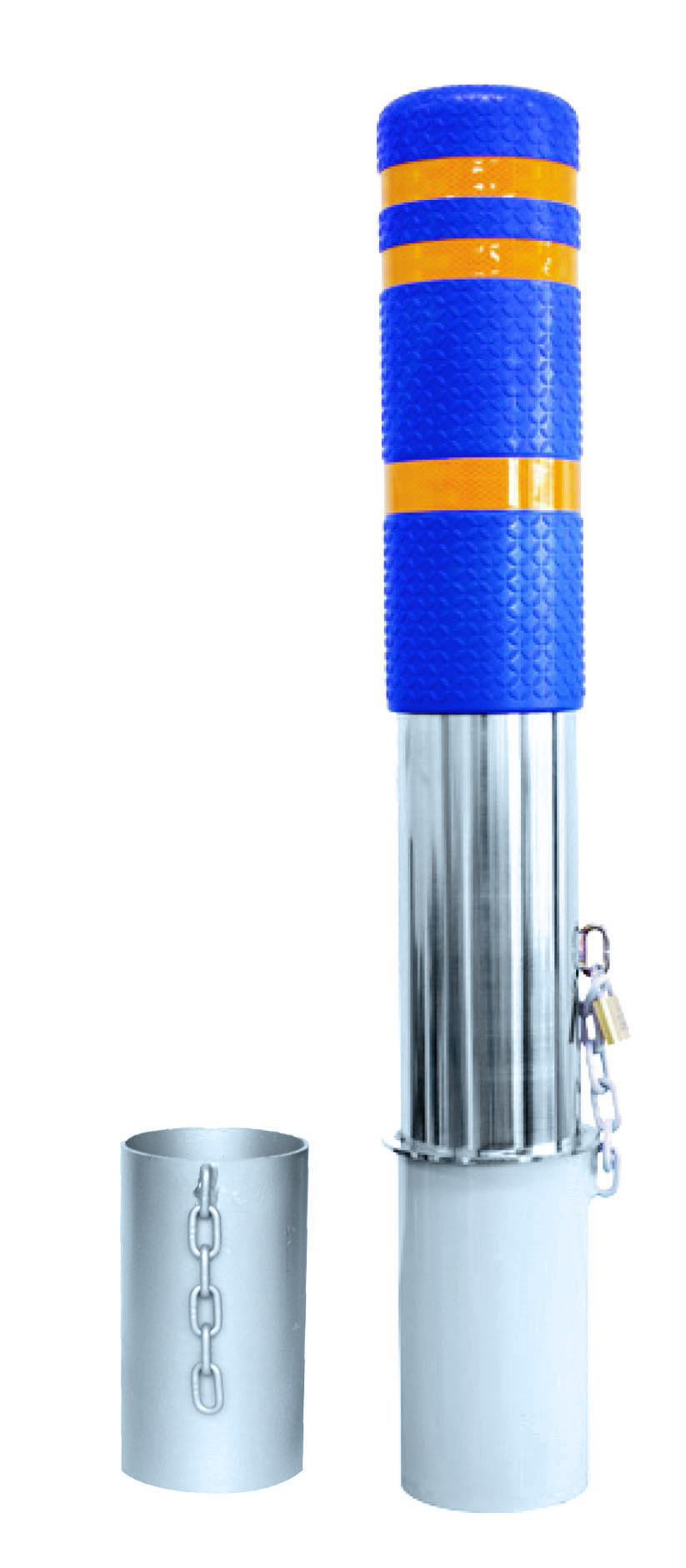

• When the upper tube is broken, or the shock absorbing layer (injection molding cap) is broken, or the product is buried along the road or relocated, it would be easy to replace the upper tube.
• It is installed in pedestrian-only areas such as a crosswalk and builds a safe pedestrian culture.

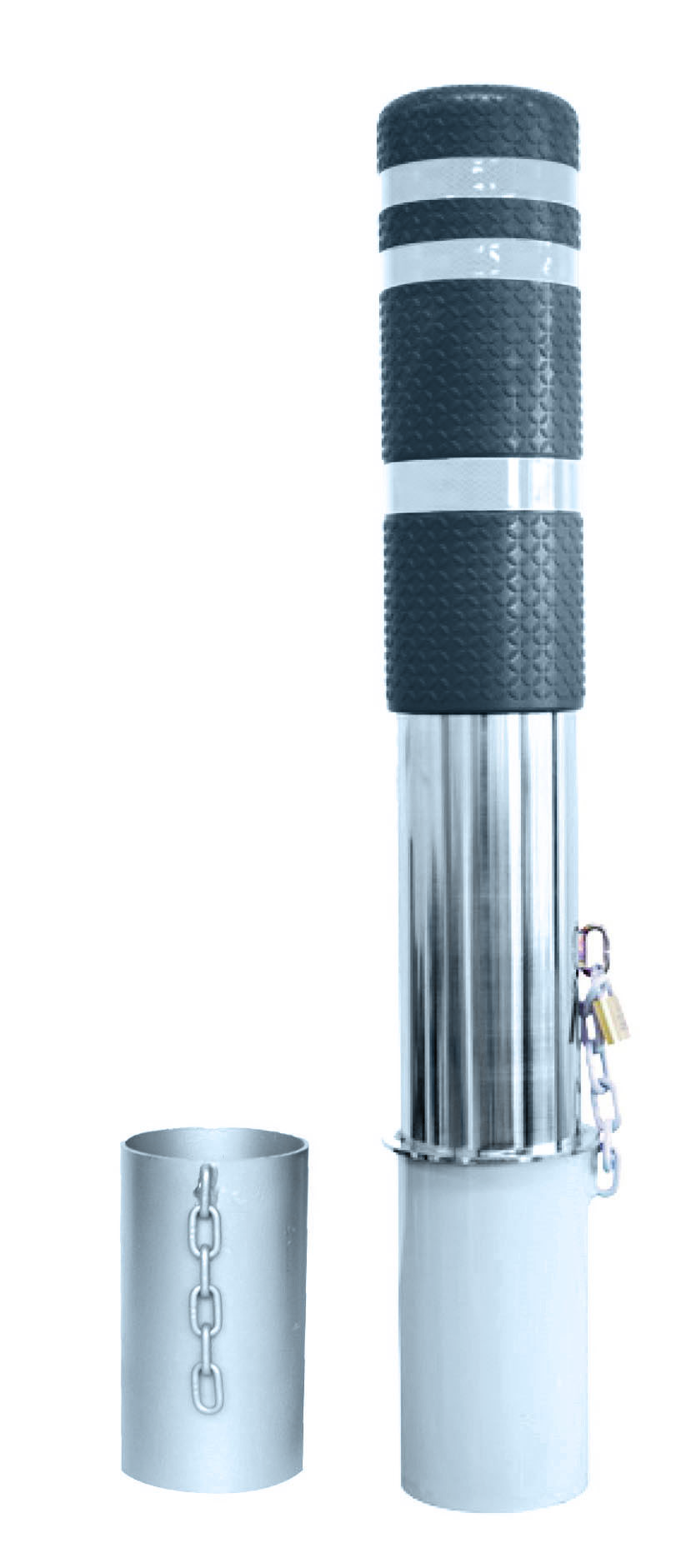

• Available in various colors, products can be customized suitably for individual conditions.

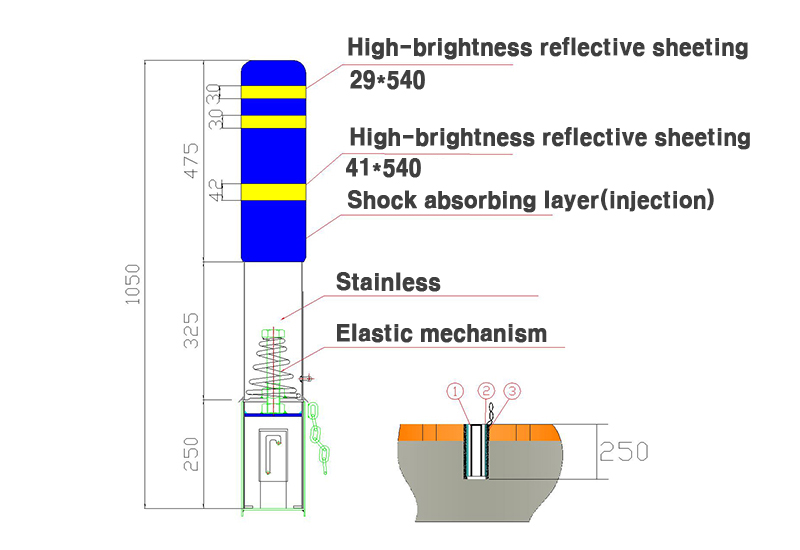

Drawing
TI-65-STS detail view
닫기
How to install
1. Drill a hole in the depth of 250mm using the boring drill.
2.Insert the transportable lower tube into the drilled hole and then make it align with the surface of the road.
3. Place concrete or mortar in the bored hole.
4. Press-fit the bollard into the transportable lower tube, and connect the upper and lower chains, and fix by using a lock.

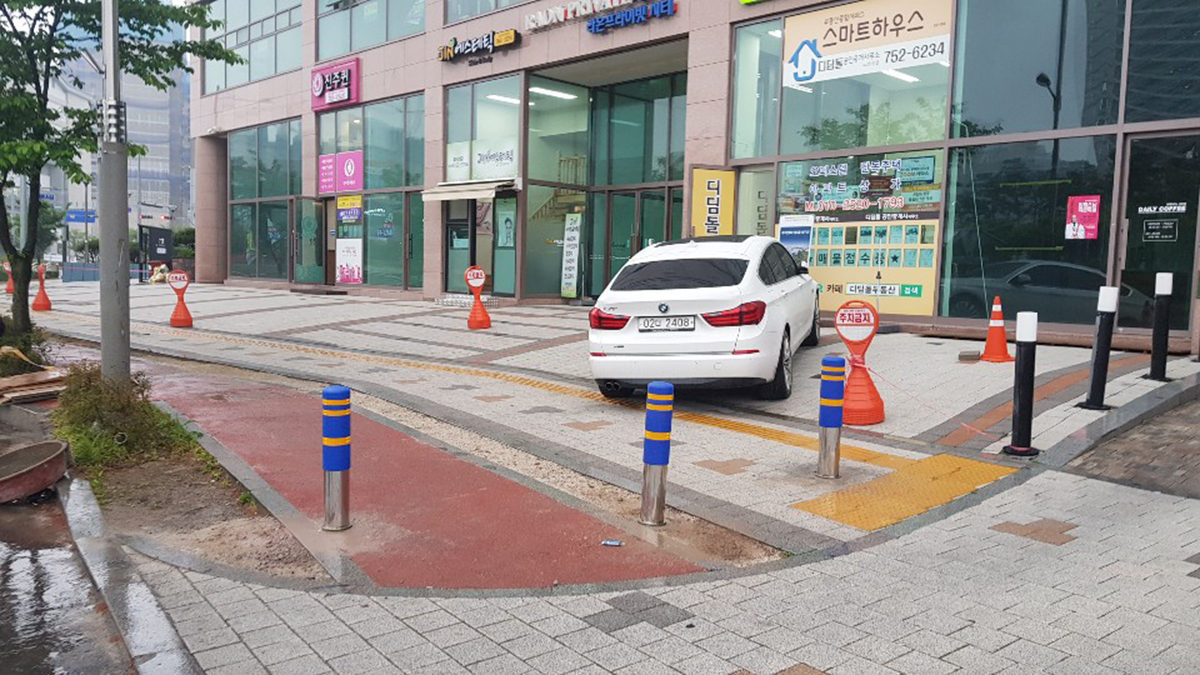

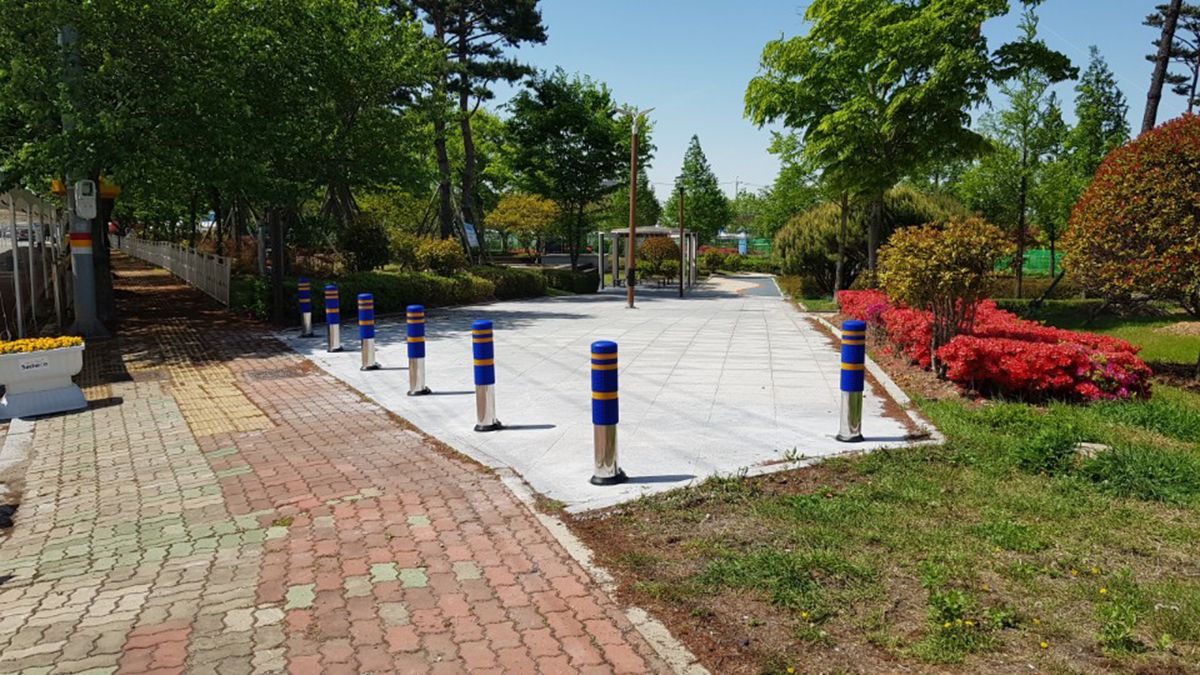

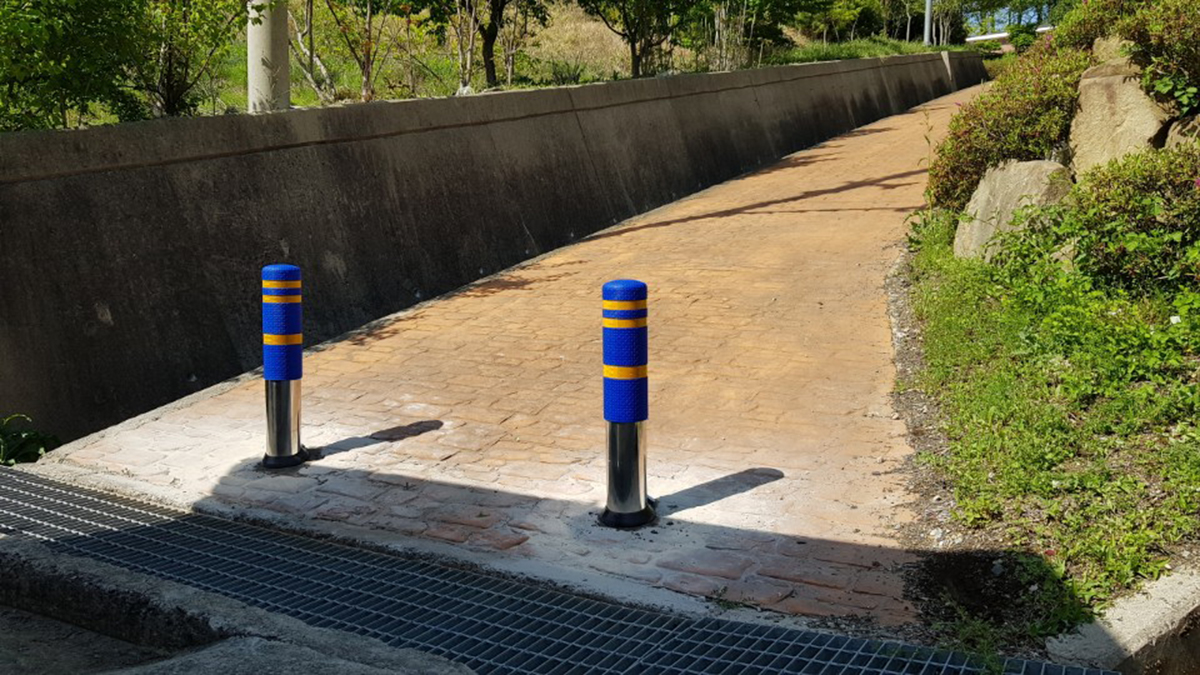

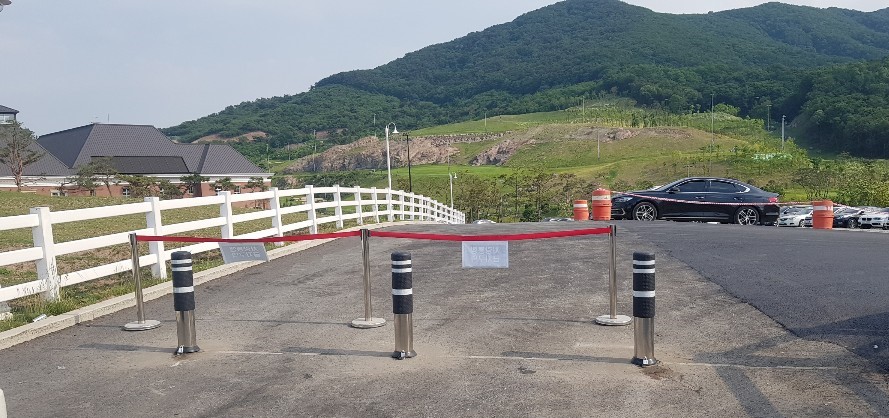

Installation photo
