TI-92-STS
TIROAD TI-92-STS
Product name and specification
Product
TI-92-STS
Standard
Φ96*W1200*H600(mm)
Material
Stainless(STS)
Number
23105045
Product features
• It prevents cars from going on to sidewalks. If necessary, a car entry can be permitted momentarily.
• Can be installed at the school zones, design streets, parks and bike-only roads to function as a safety and protection facility.
• Available in various colors, products can be customized suitably for individual conditions.

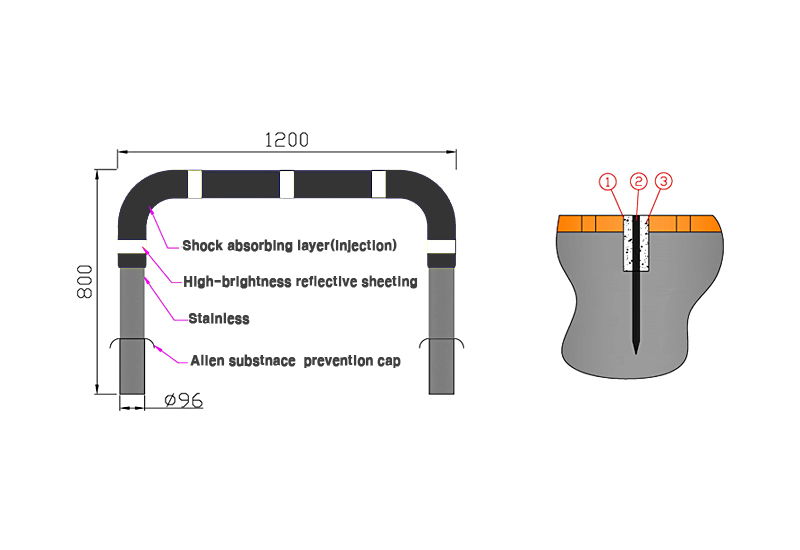

Drawing
TI-92-STS detail view
닫기
How to install
1. Drill a hole in the depth of 200mm using the boring drill.
2. Insert the transportable lower tube into the drilled hole and then make it align with the surface the road.
3. Place concrete or mortar in the bored hole.
4.Press-fit the bollard into the transportable lower tube, and connect the upper and lower chains, and fix using a lock
Installation photo
