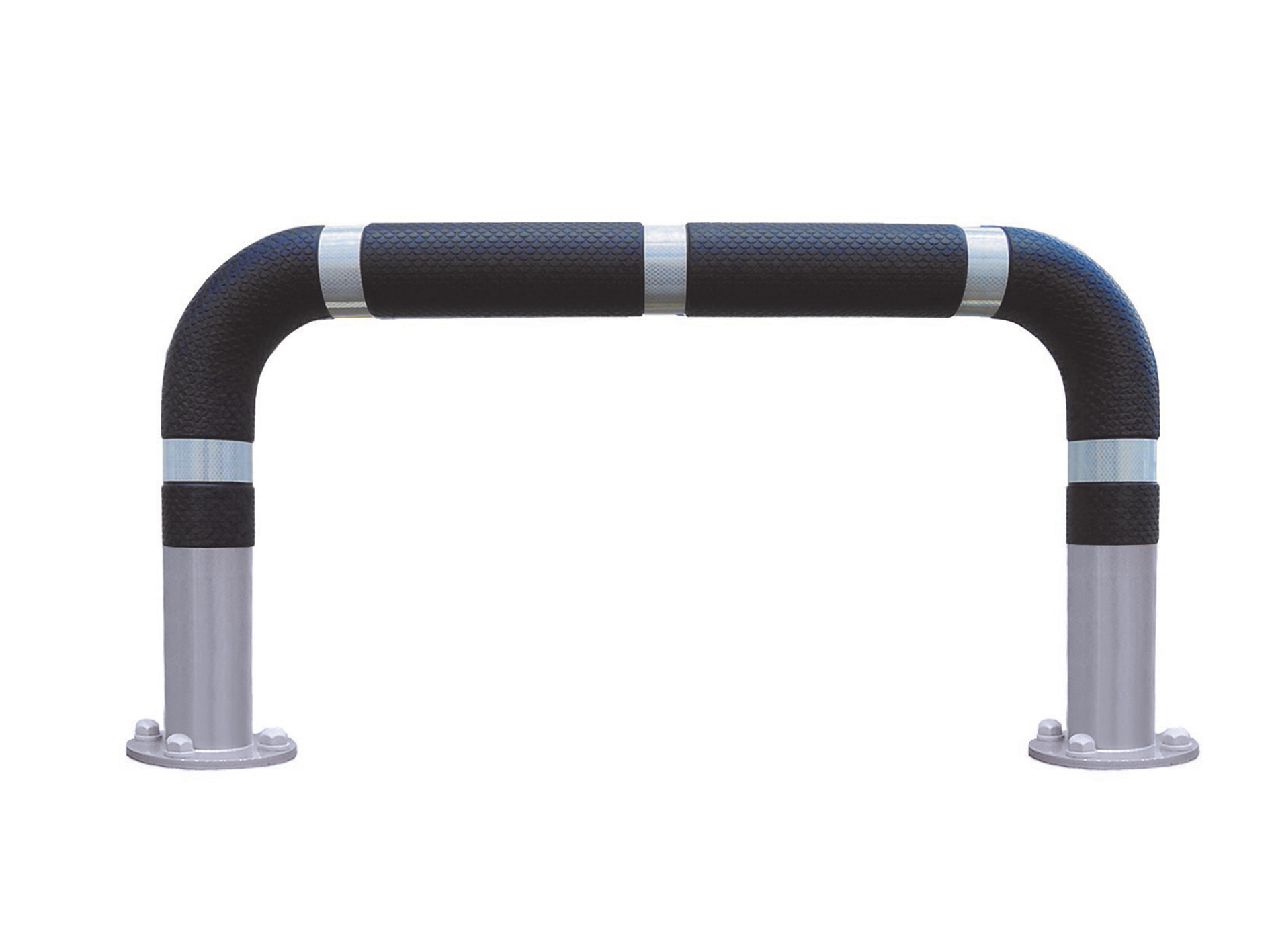

TI-11
TIROAD TI-11
Product name and specification
Product
TI-11
Standard
Φ96*W1200*H600(mm)
Material
Steel(Double powder coating)
Number
22109558
Product features
• In general, it is installed on the concrete or stone in an area where buried installation is difficult.
• Can be installed at the school zones, design streets, parks and bike-only roads to function as a safety and protection facility.

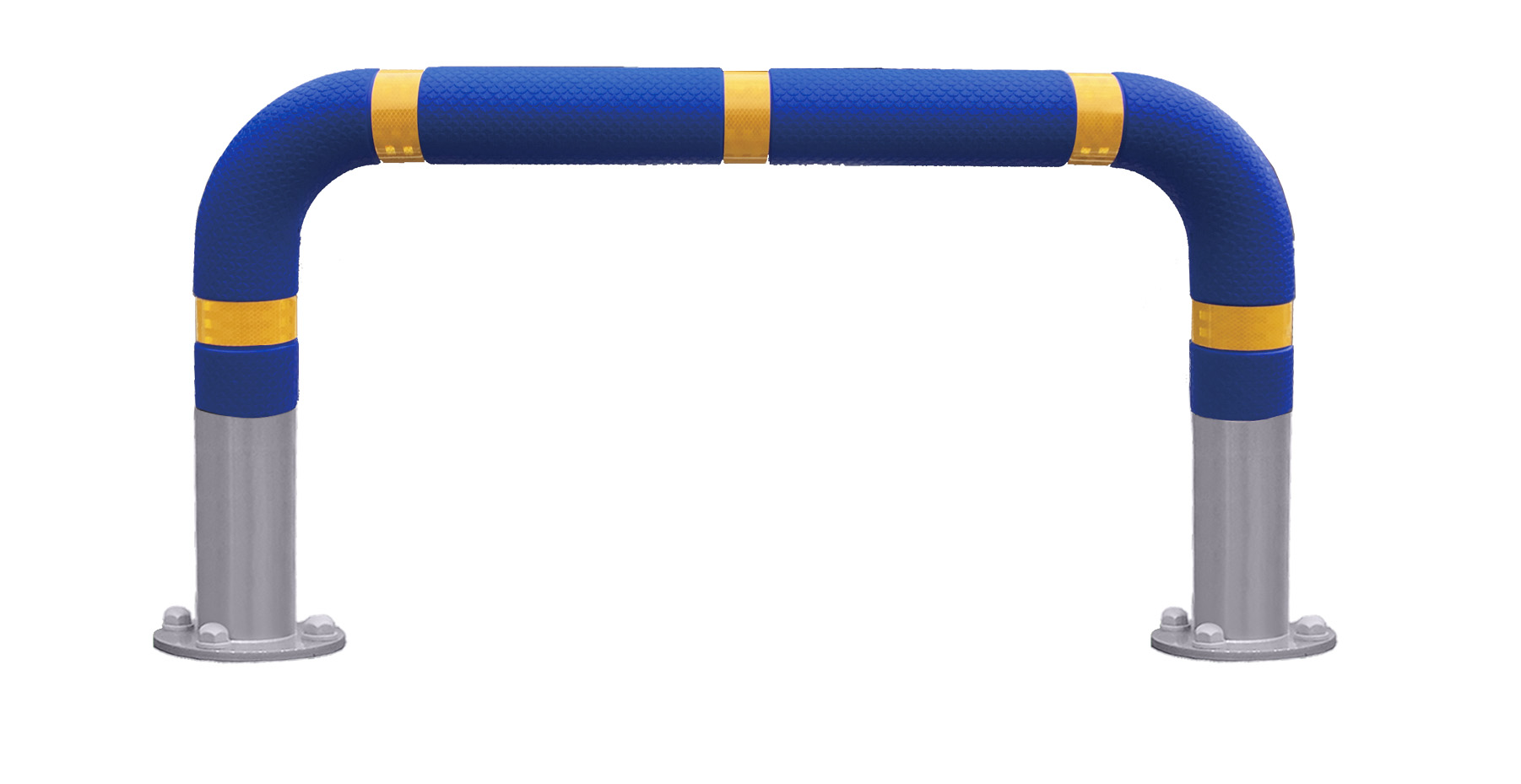

• Available in various colors, products can be customized suitably for individual conditions.

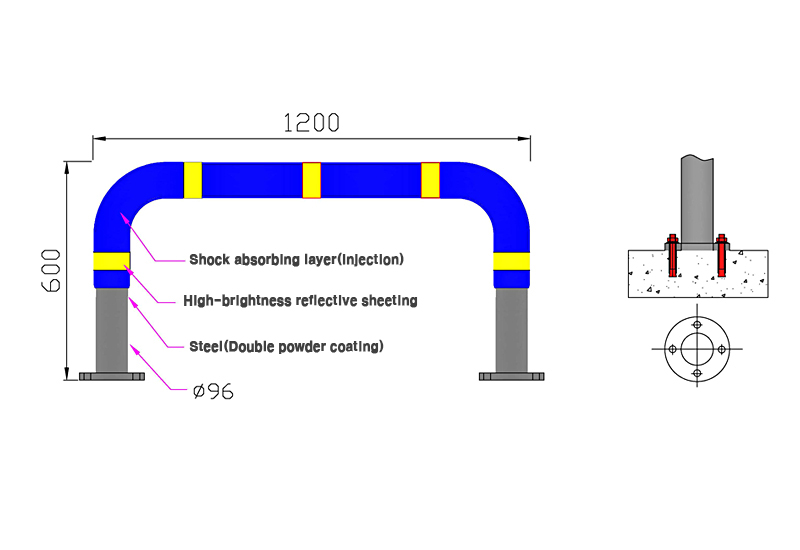

Drawing
TI-11 detail view
닫기
How to install
1. Mark on the anchor spot with ink-string.
2. Drill a hole with a boring drill.
3. Insert a bollard after driving an anchor bolt by pressure.
4. Fasten the anchor bolt with a nut.

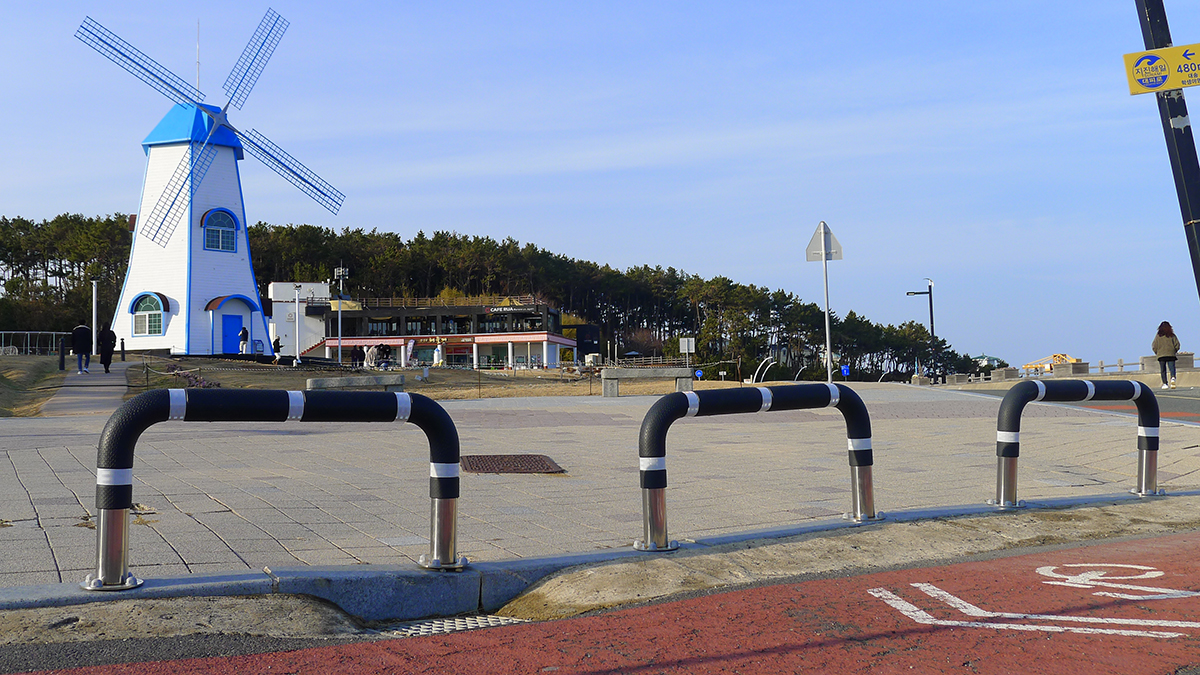

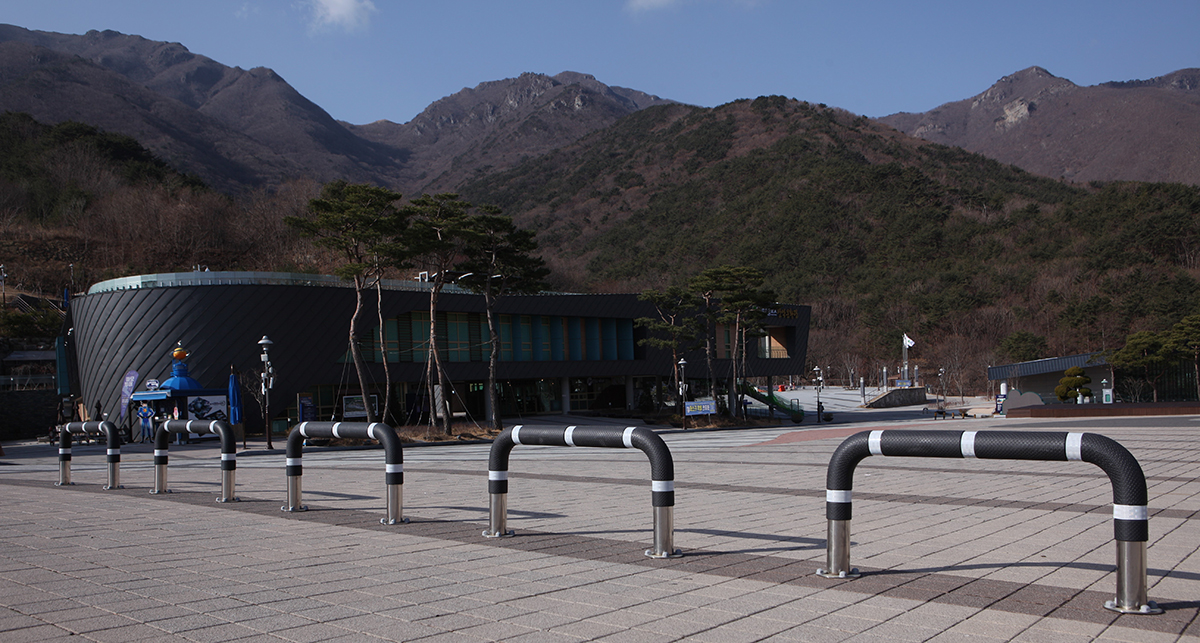

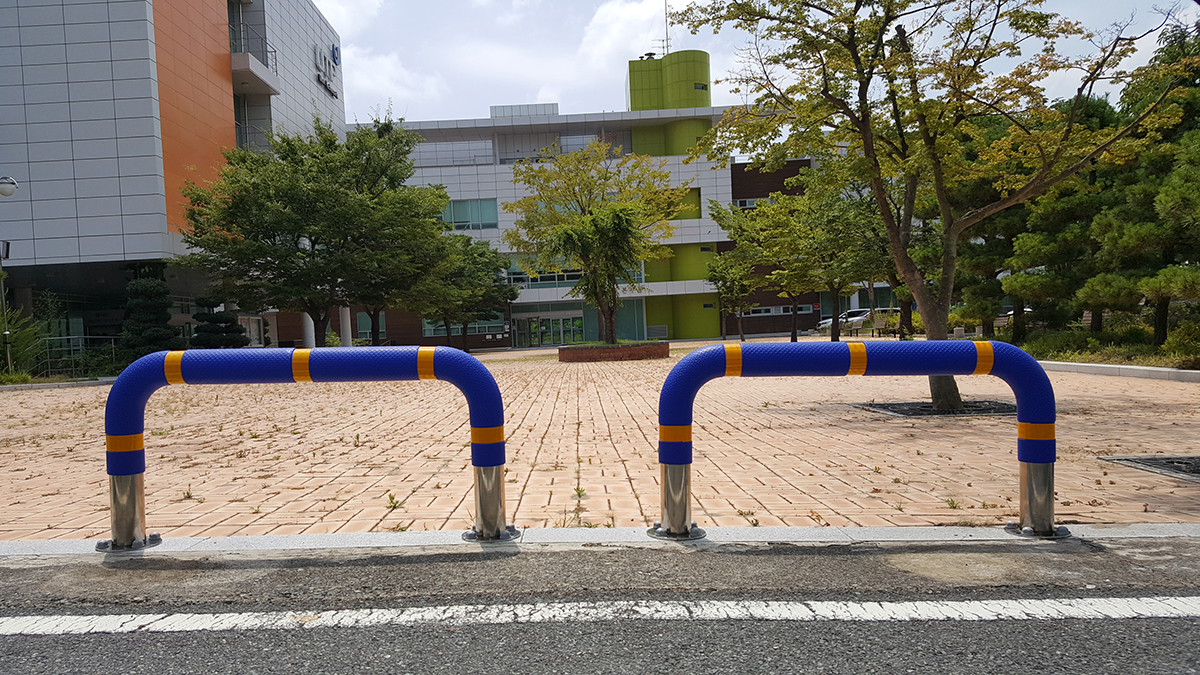

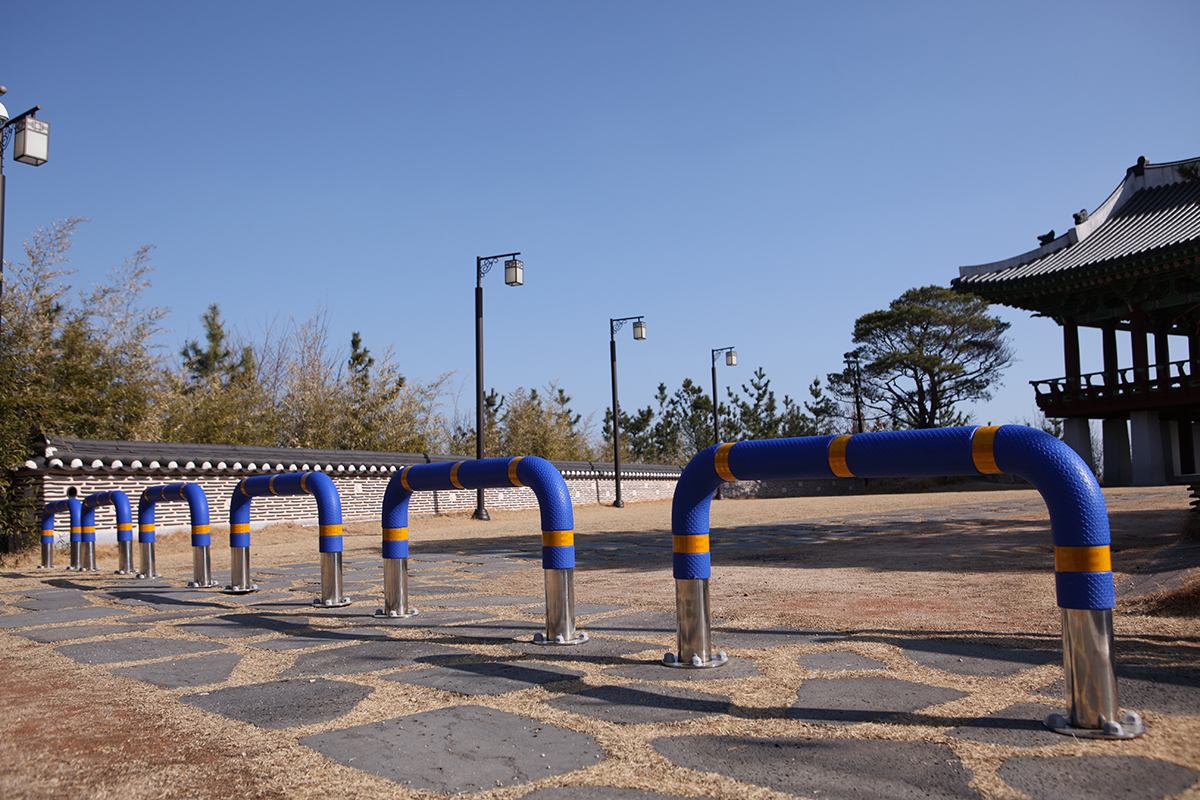

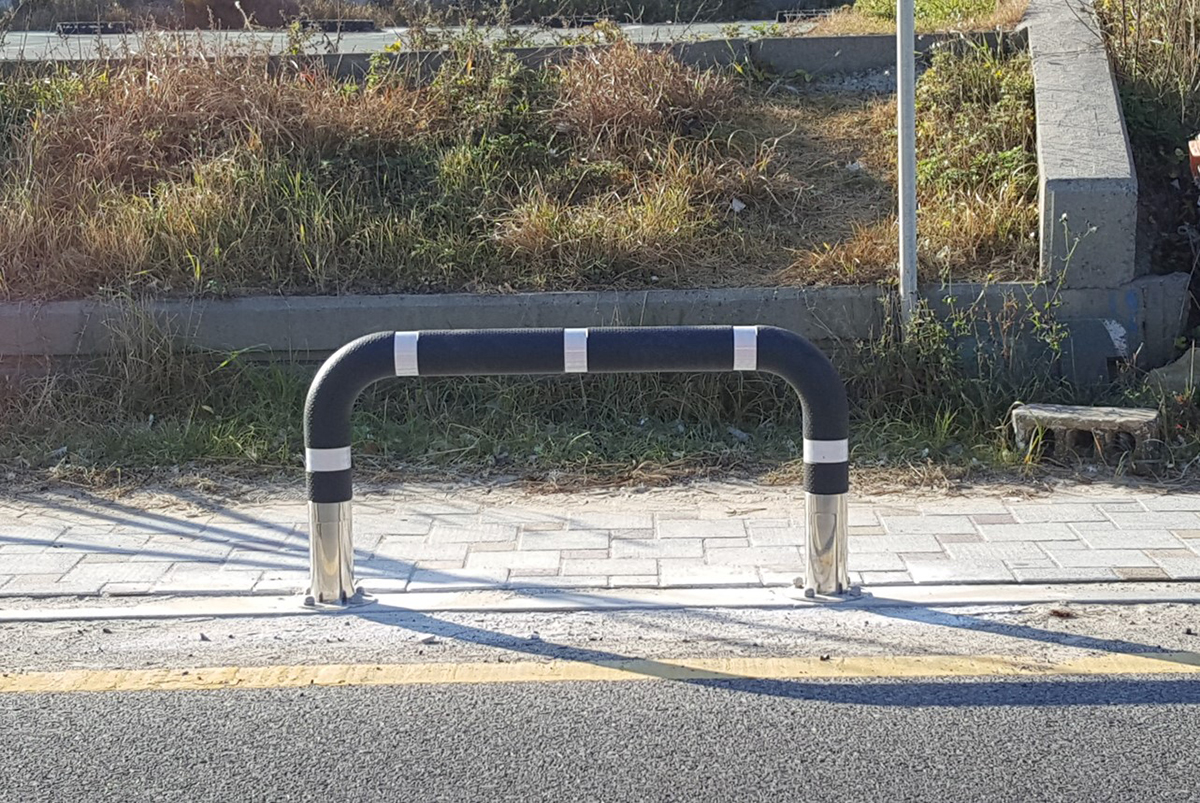

Installation photo
