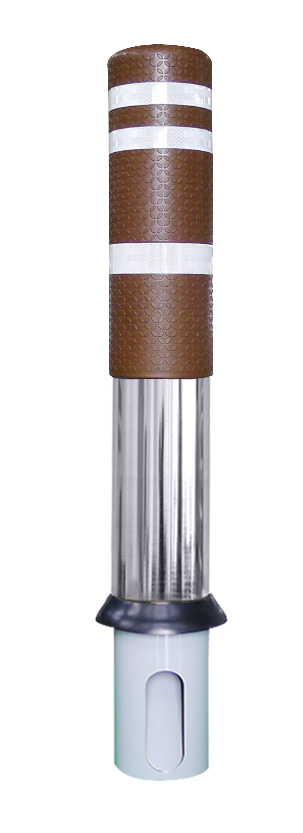

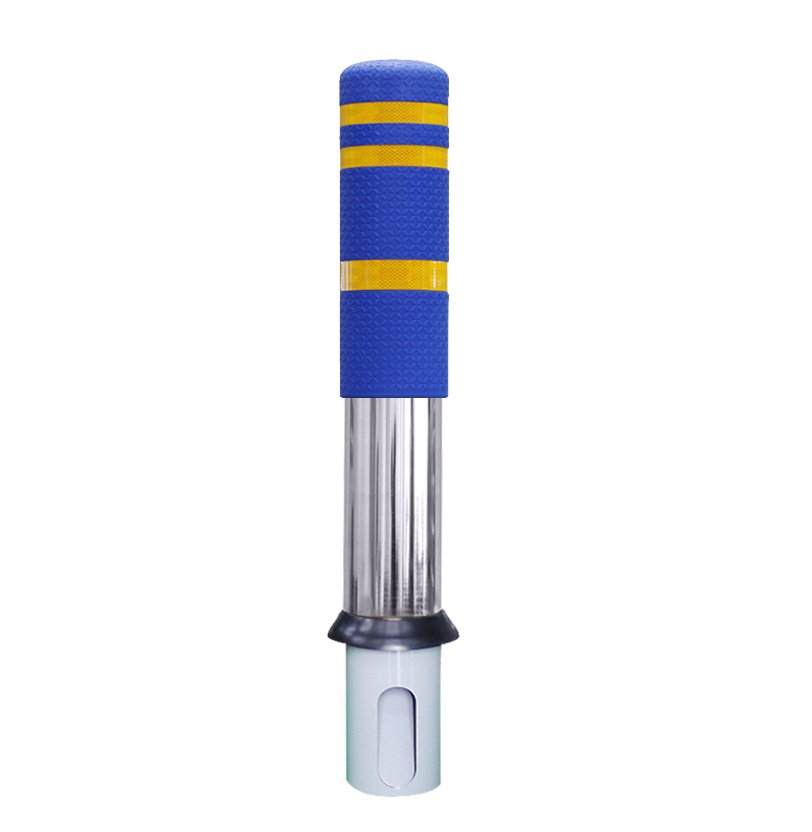

TI-22
TIROAD TI-22
Product name and specification
Product
TI-22
Standard
Φ153*800mm
Material
Stainless(STS)
Number
22568457
Product features

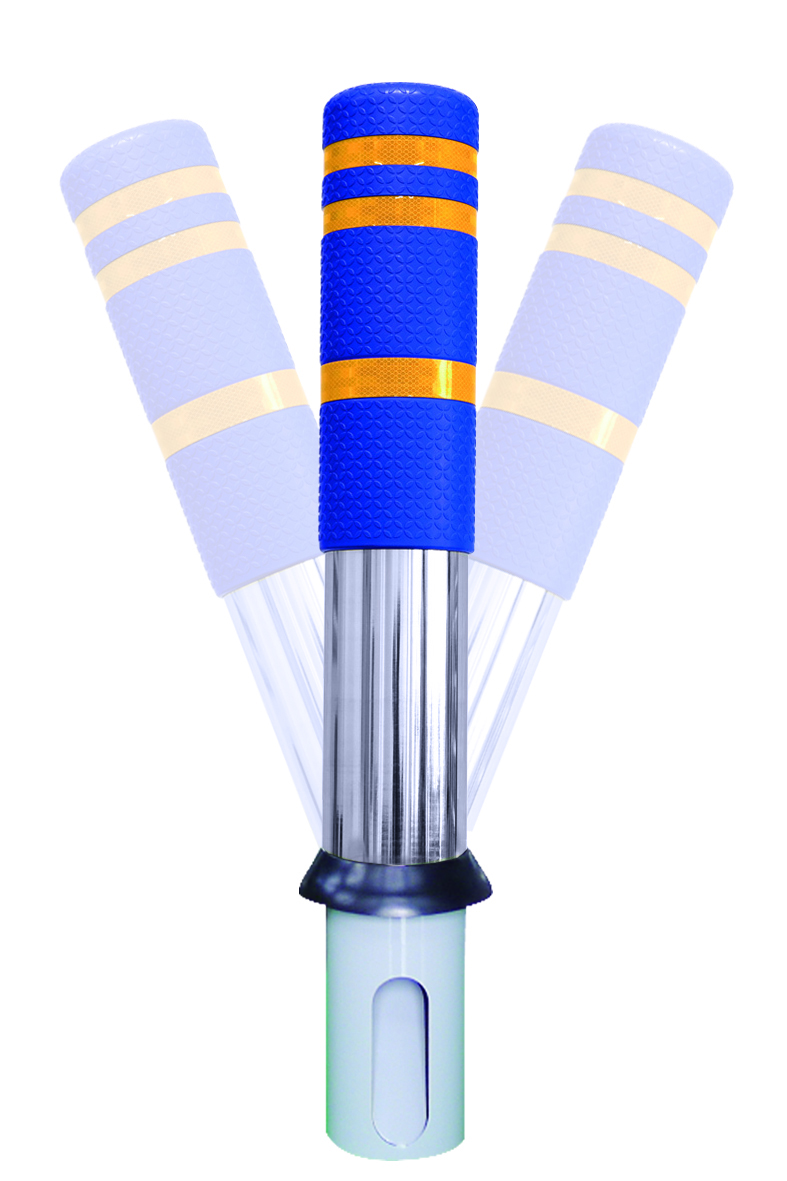

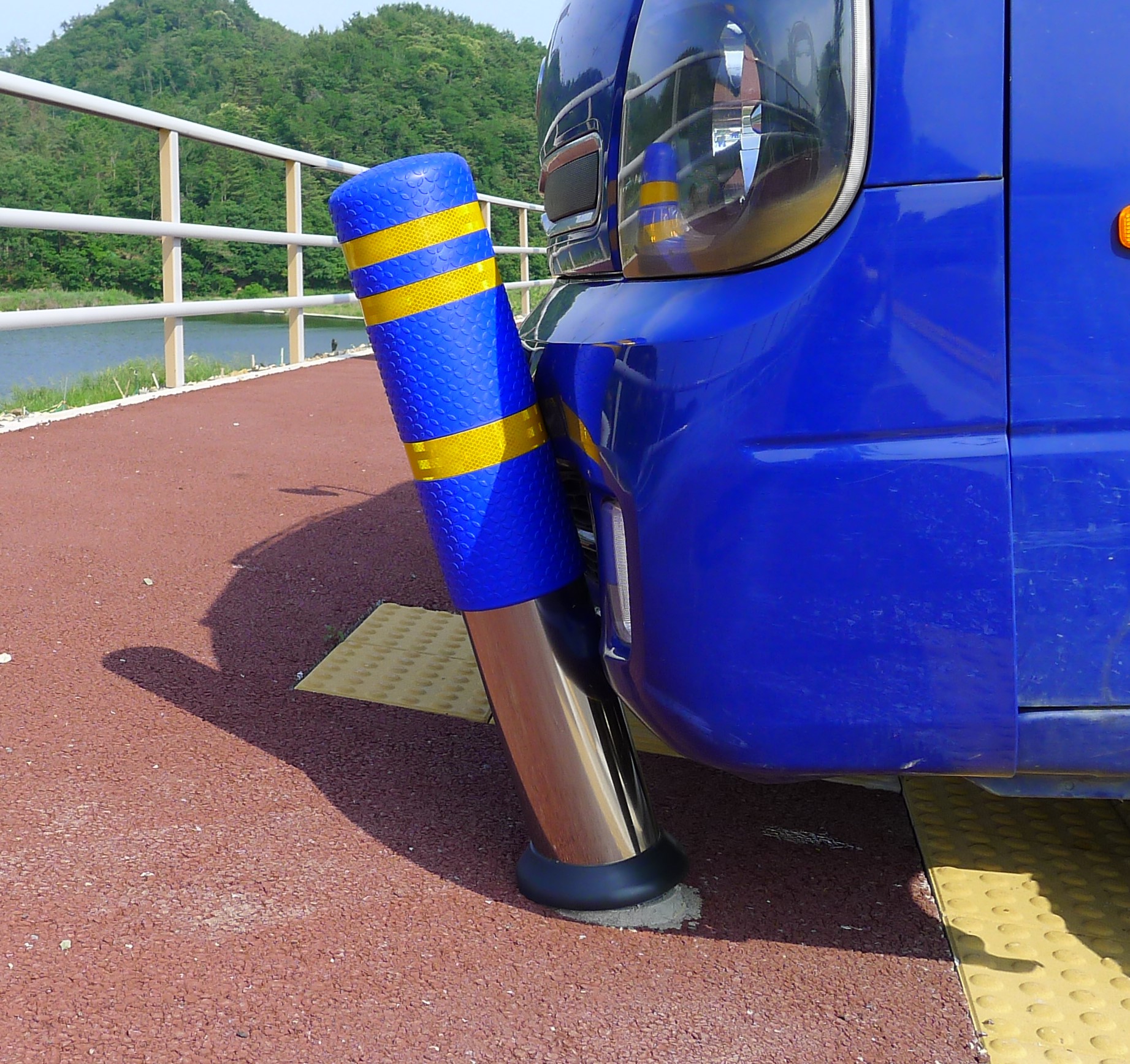

• As a flexible product made of mechanism(bolt and spring unit), it deflects about 20 degrees upon impact and absorbs shock.
• Can be installed at the no car zones, such as crosswalks, to help secure the safety culture for pedestrians.
• When the upper tube is broken, or the shock absorbing layer (injection molding cap) is broken, or the product is buried along the road or relocated, it would be easy to replace the upper tube.sheeting.
• Available in various colors, products can be customized suitably for individual conditions.

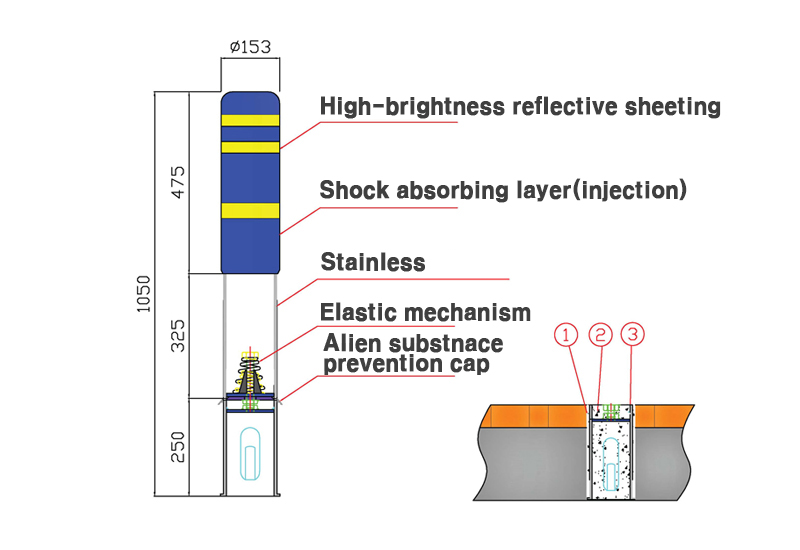

Drawing
TI-22 detail view
닫기
How to install
1. Drill a hole in the depth of 250mm using the boring drill.
2. Place concrete or mortar in the bored hole.
3.Press-fit the bollard into the concrete or mortar-placed
point, and fix it while aligning it vertically with the bottom surface, then cure th

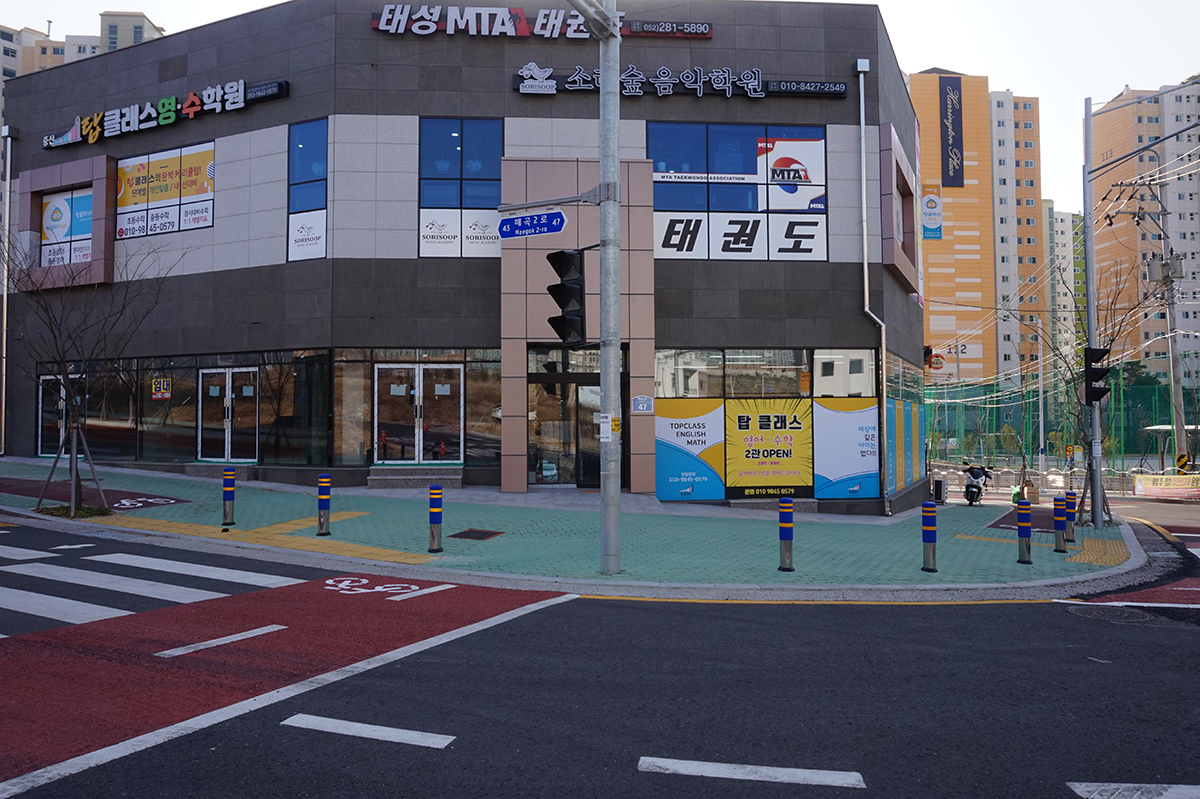

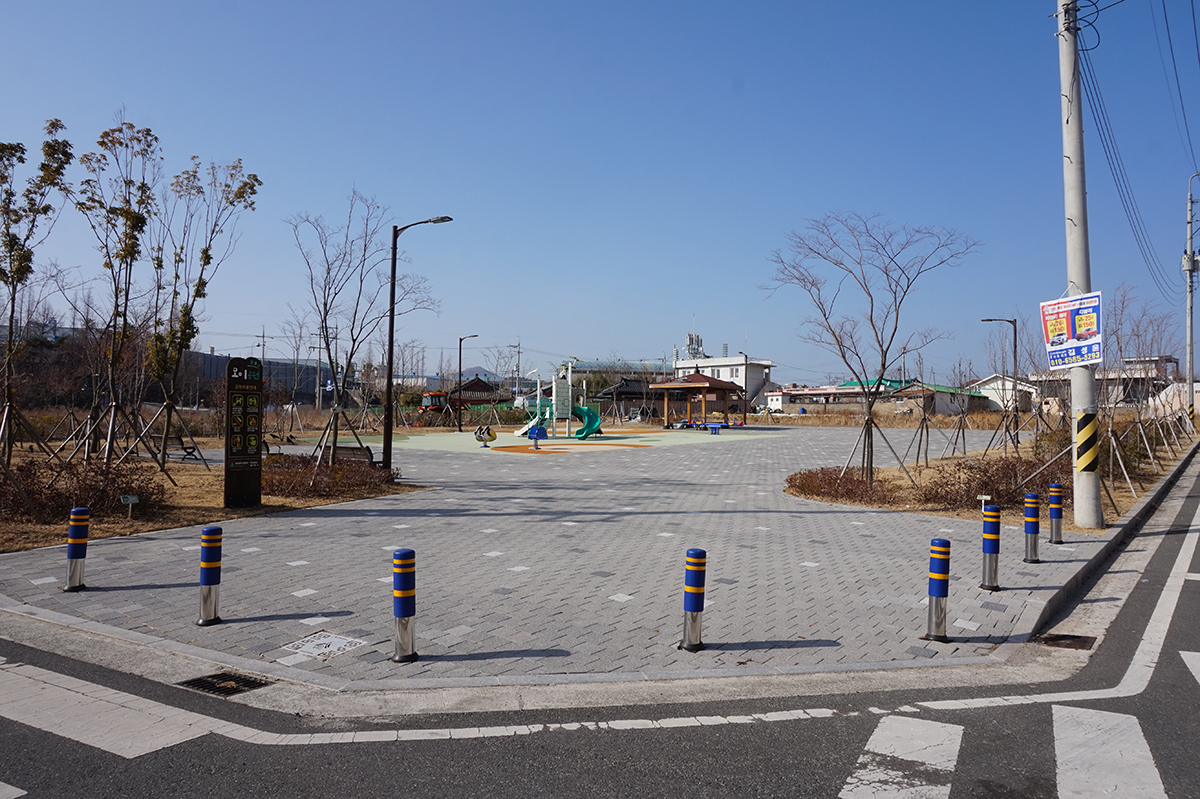

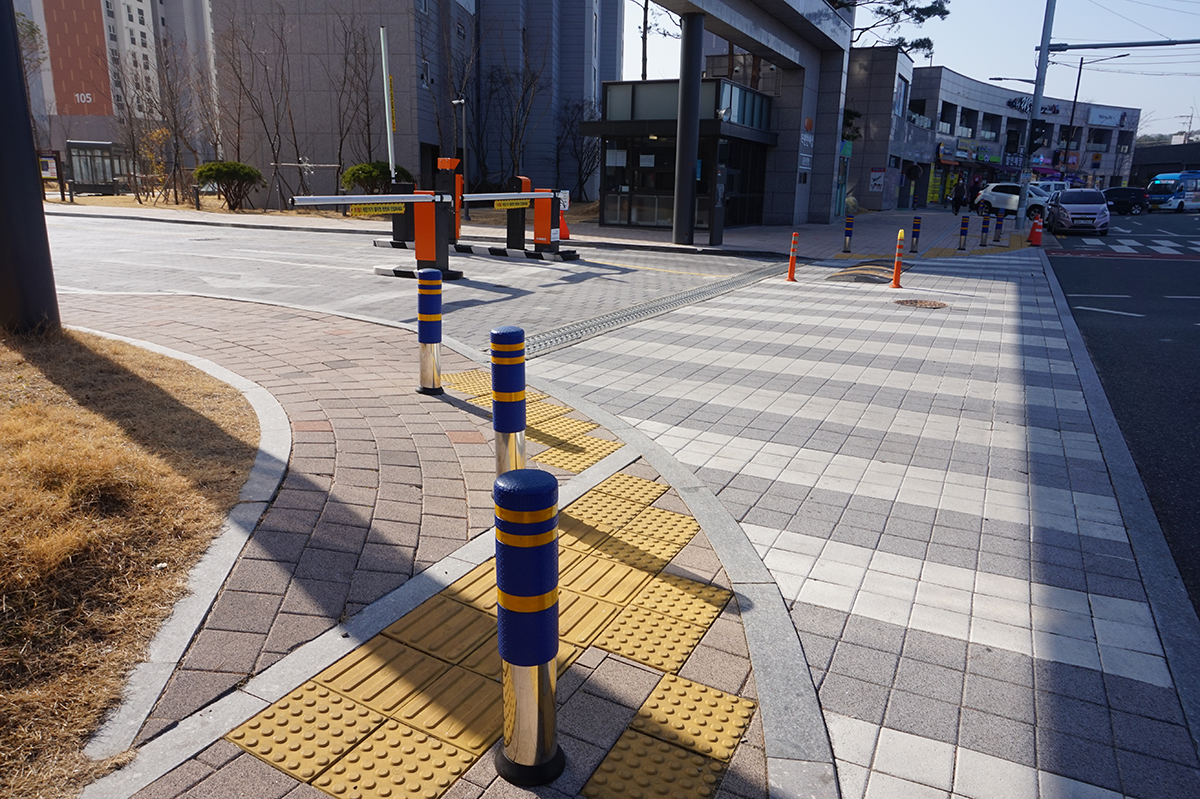

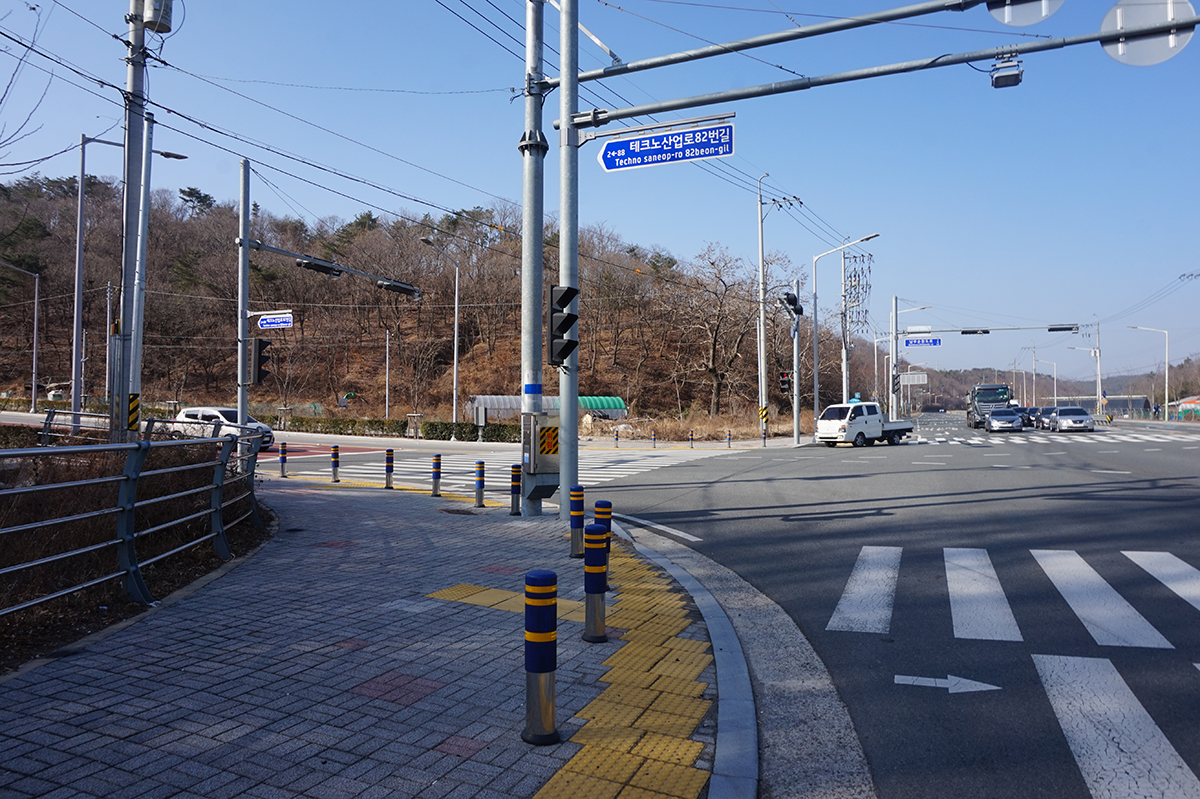

Installation photo
