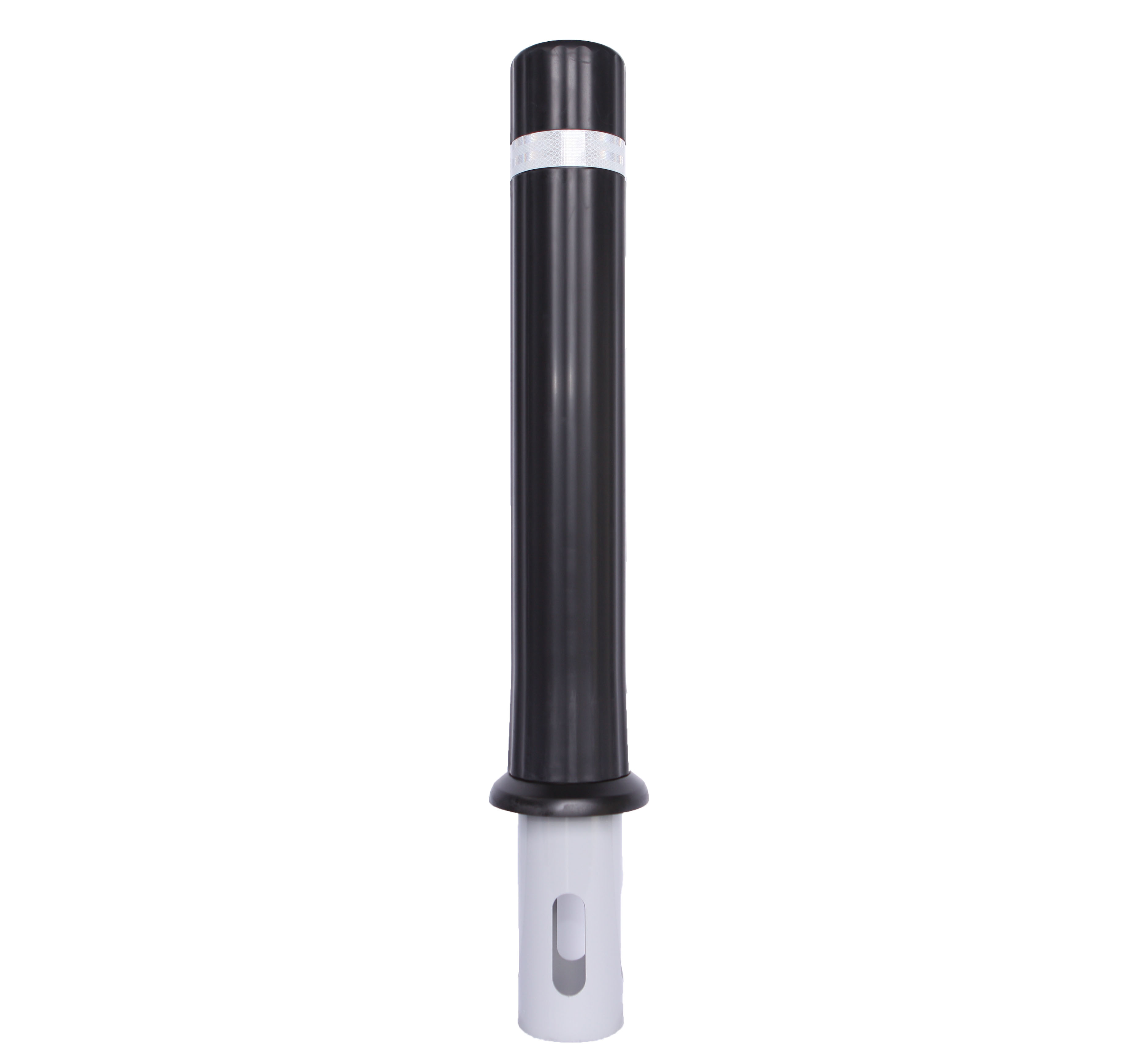

TI-26
TIROAD TI-26
Product name and specification
Product
TI-26
Standard
Φ126*800mm
Material
Steel(Double powder coating)
Number
22568457
Product features

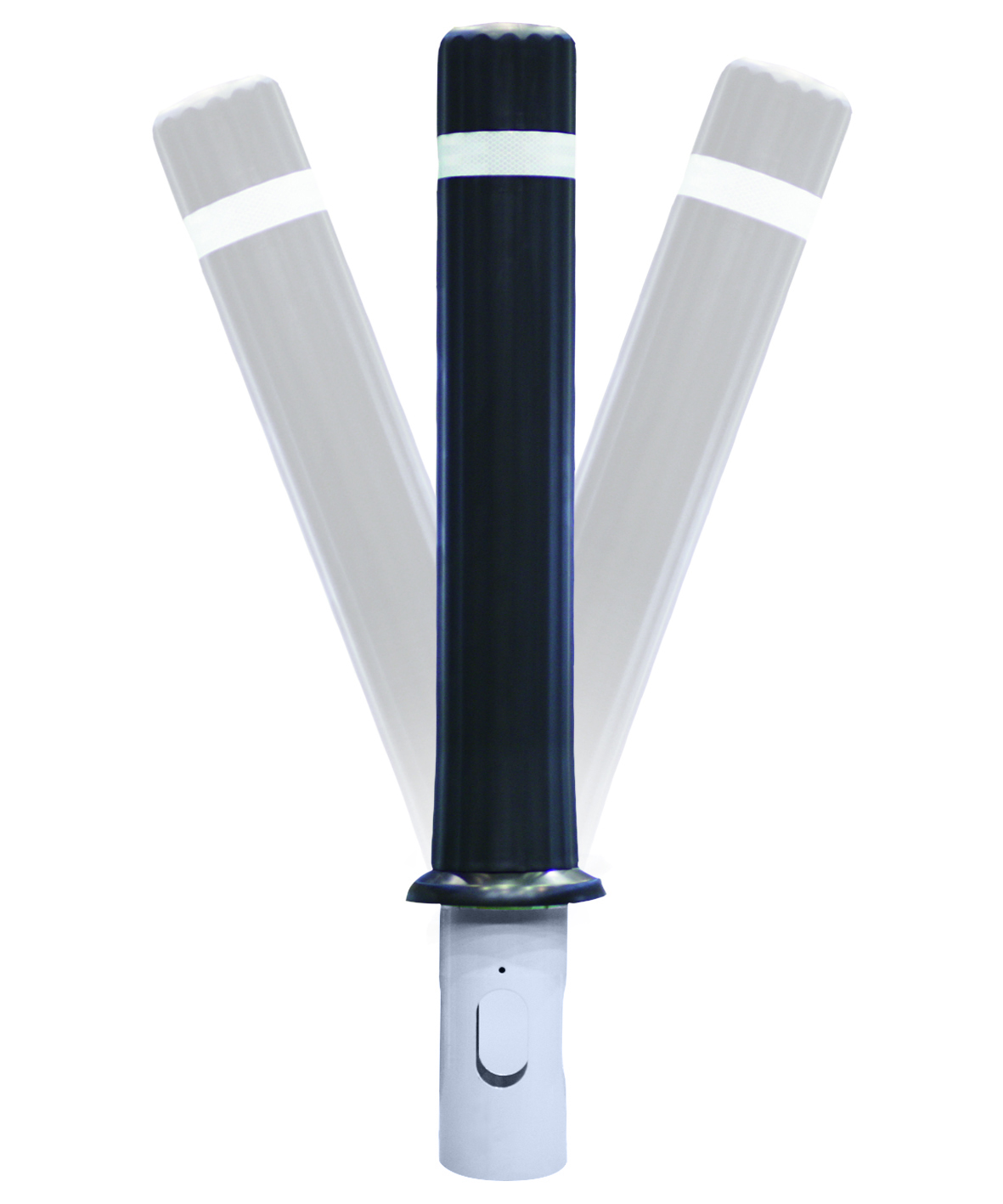

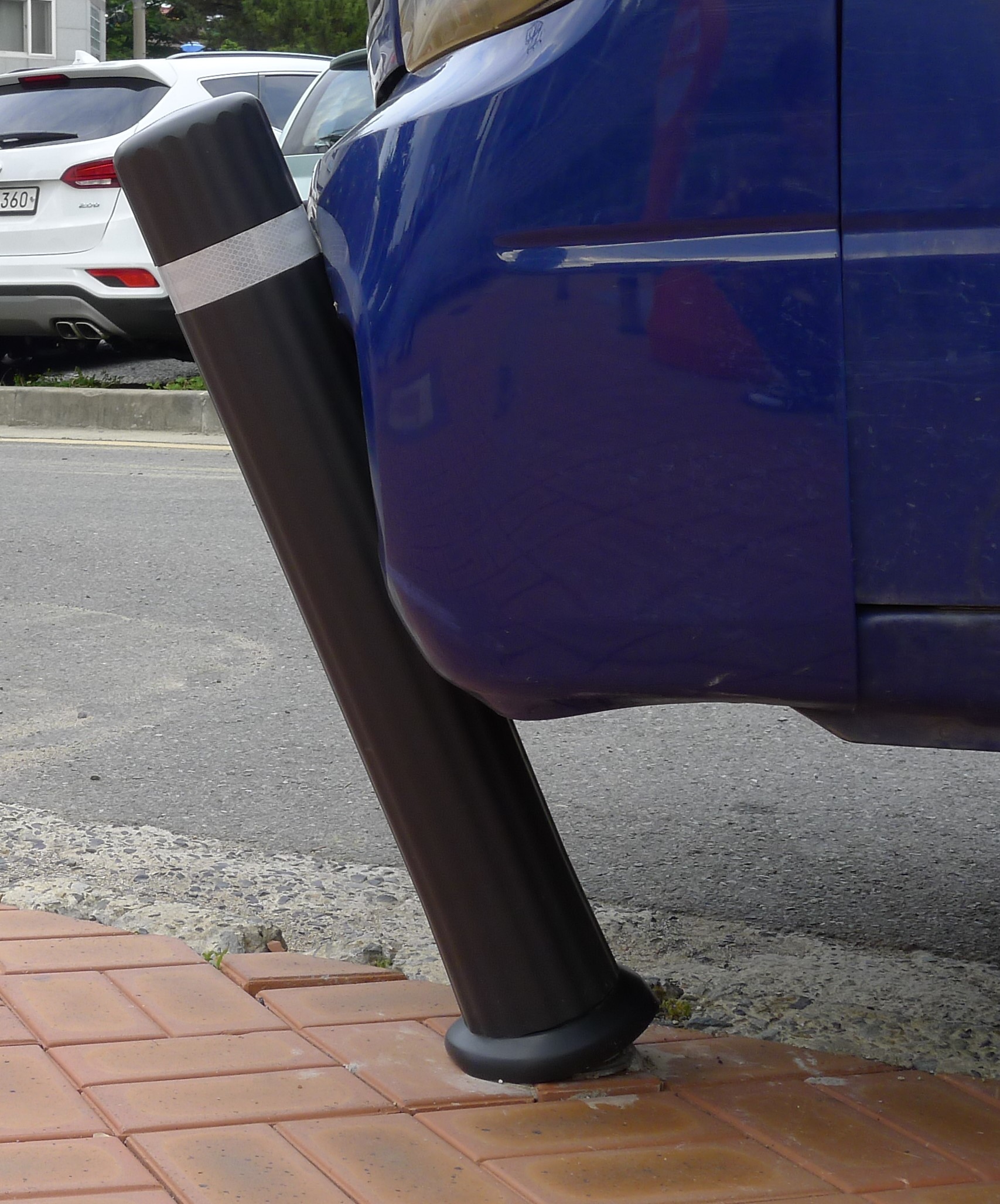

• As a flexible product made of mechanism(bolt and spring unit), it deflects about 20 degrees upon impact and absorbs shock.
• Can be installed at the no car zones, such as crosswalks, to help secure the safety culture for pedestrians.
• Can be installed at the school zones, design streets, parks and bike-only roads to function as a safety and protection facility.
• Available in various colors, products can be customized suitably for individual conditions.

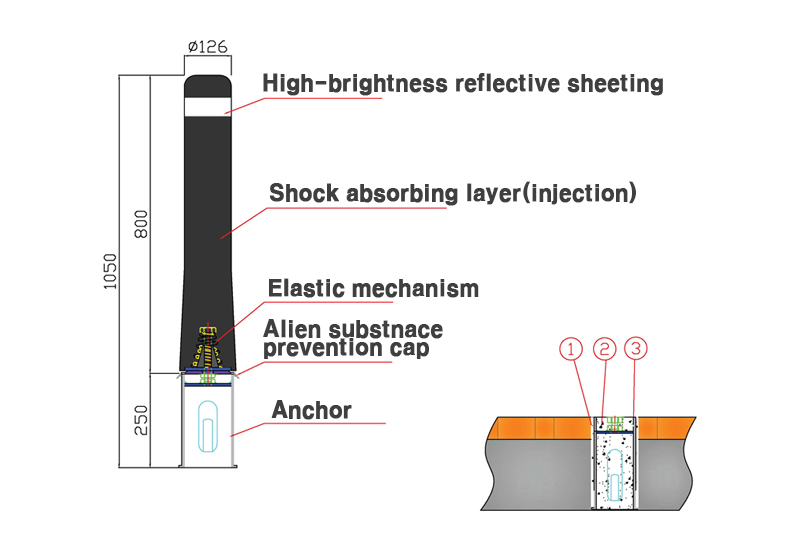

Drawing
TI-26 detail view
닫기
How to install
1. Drill a hole in the depth of 250mm using the boring drill.
2. Place concrete or mortar in the bored hole.
3.Press-fit the bollard into the concrete or mortar-placed
point, and fix it while aligning it vertically with the bottom surface, then cure the concrete.

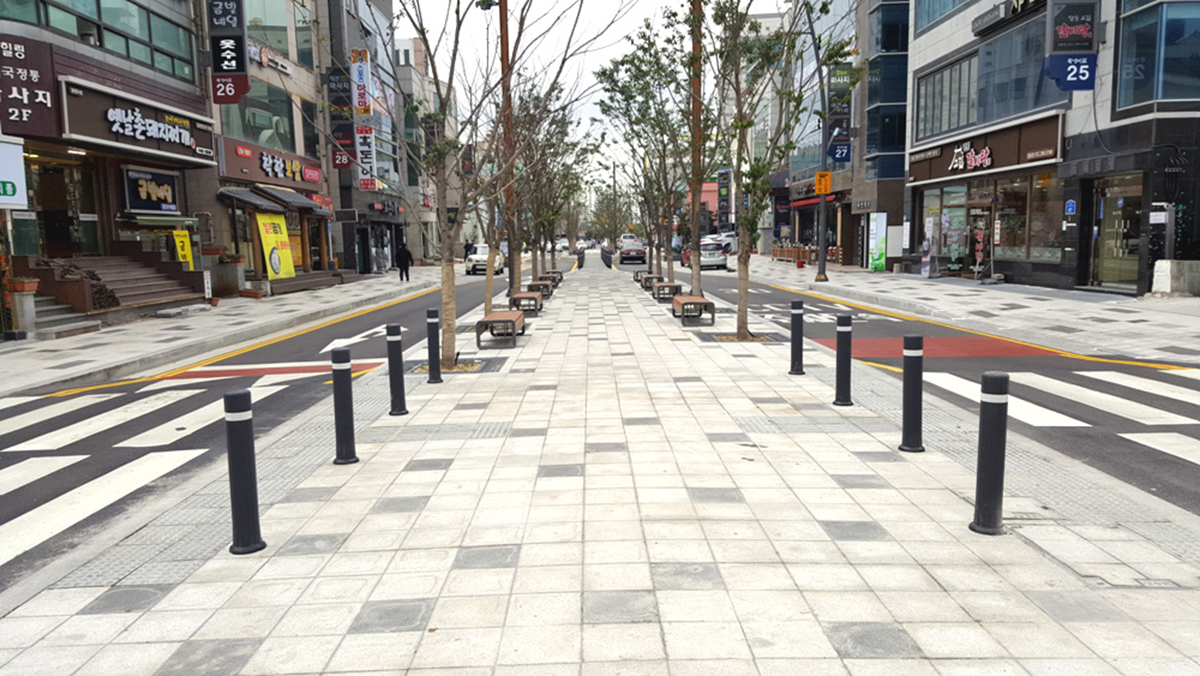

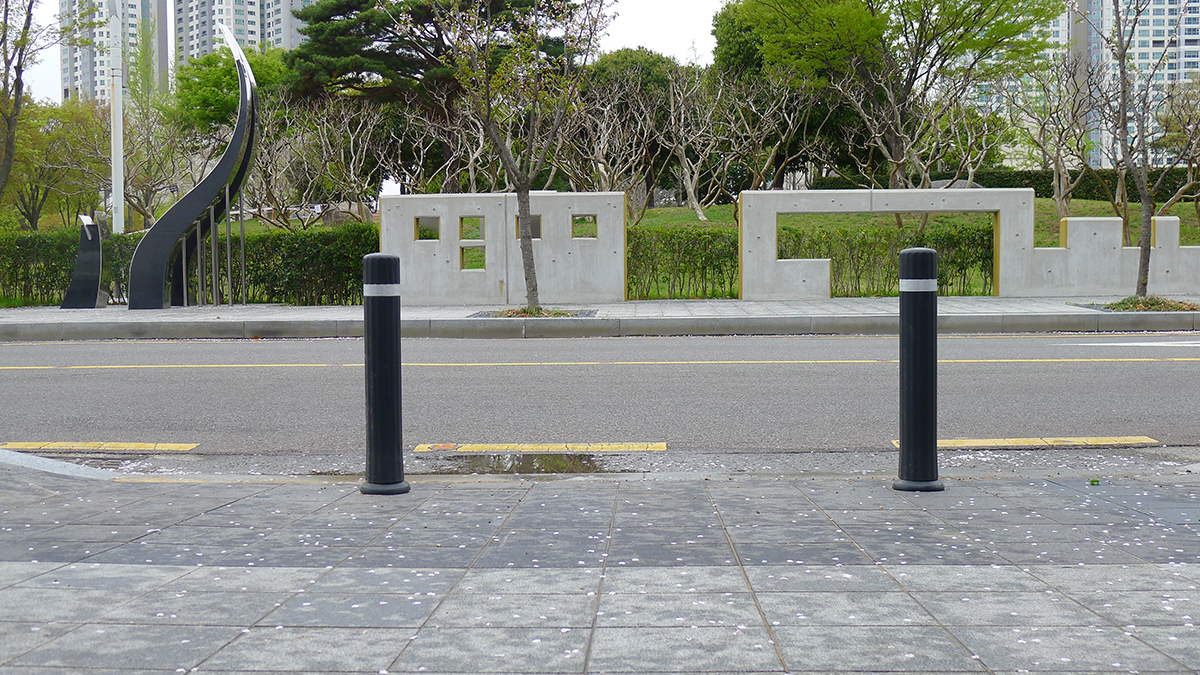

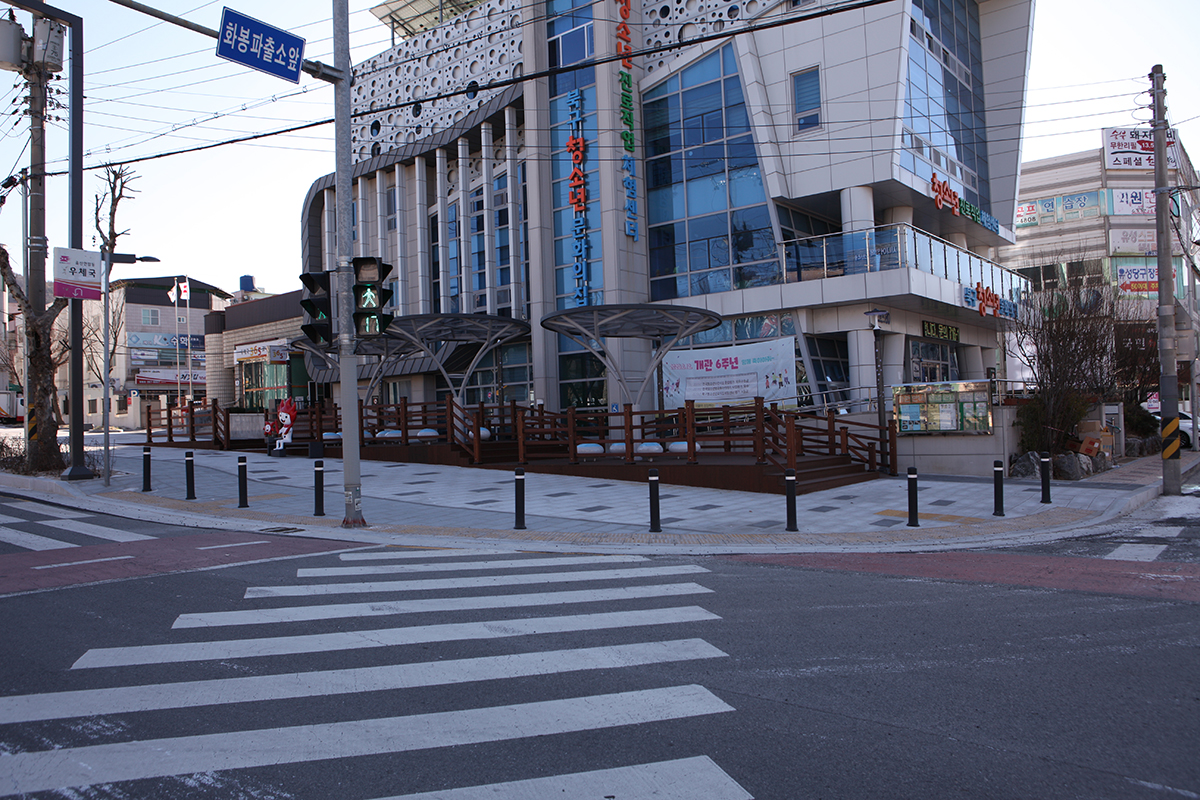

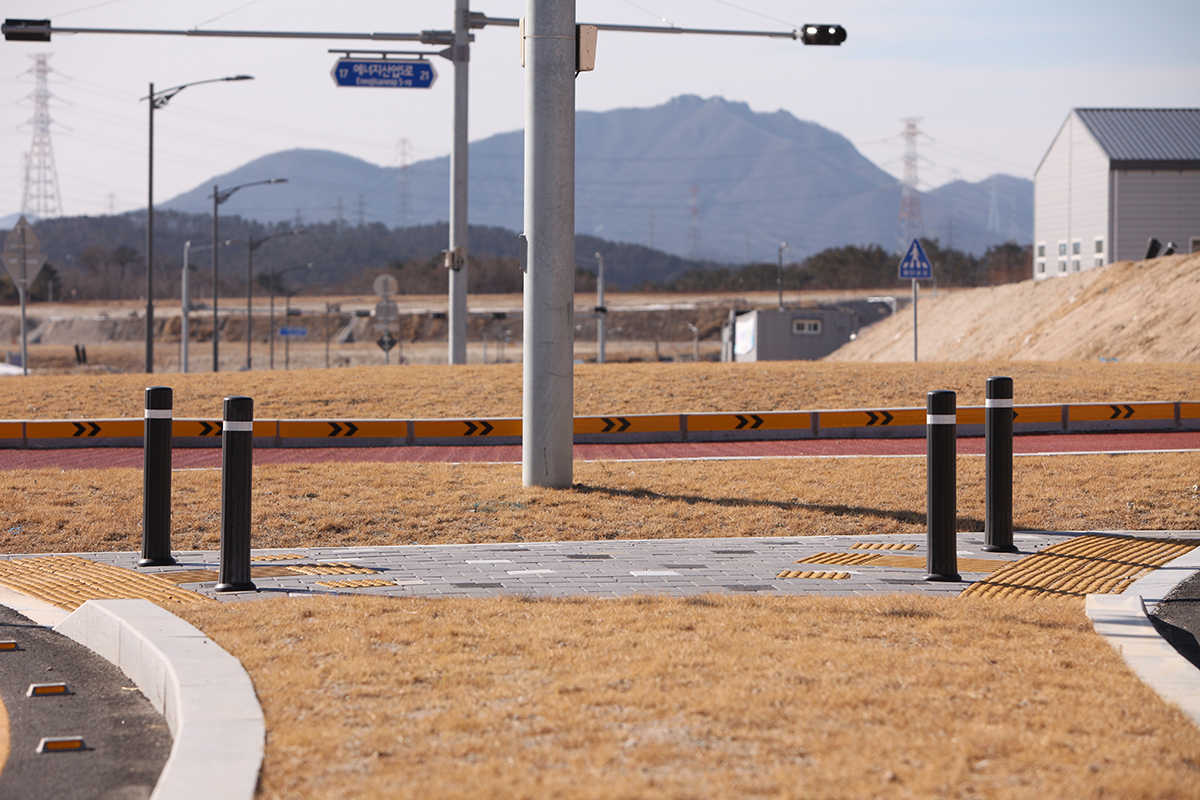

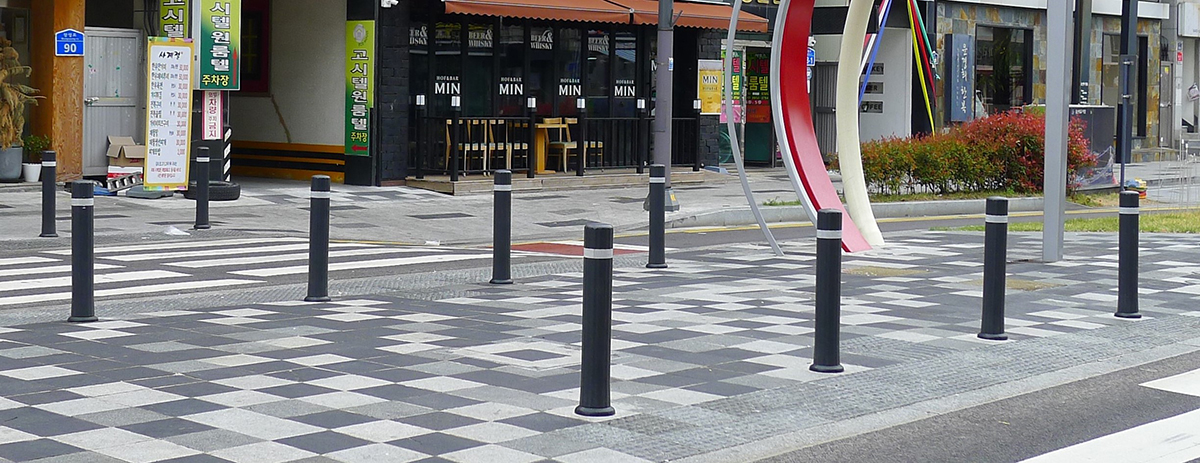

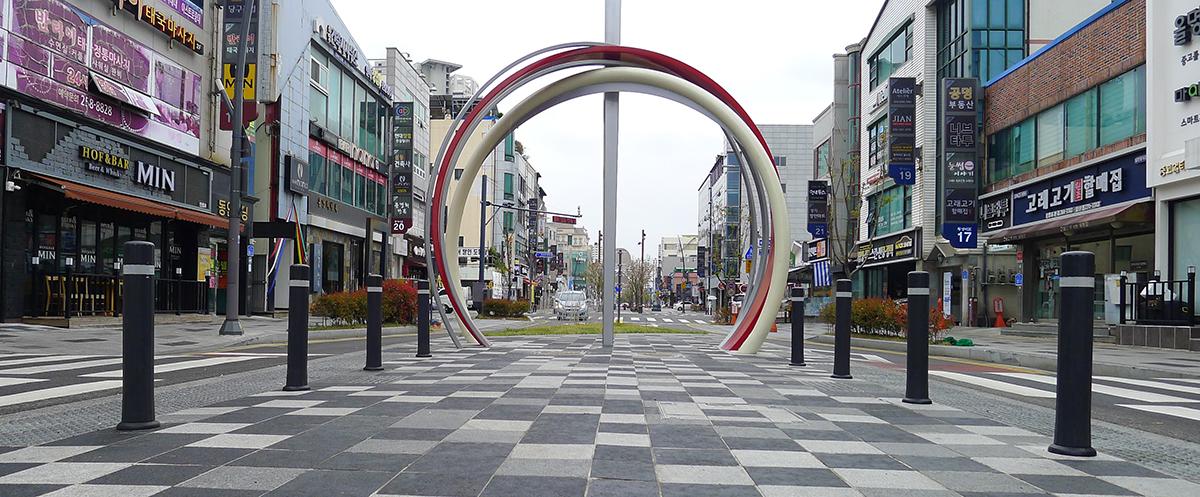

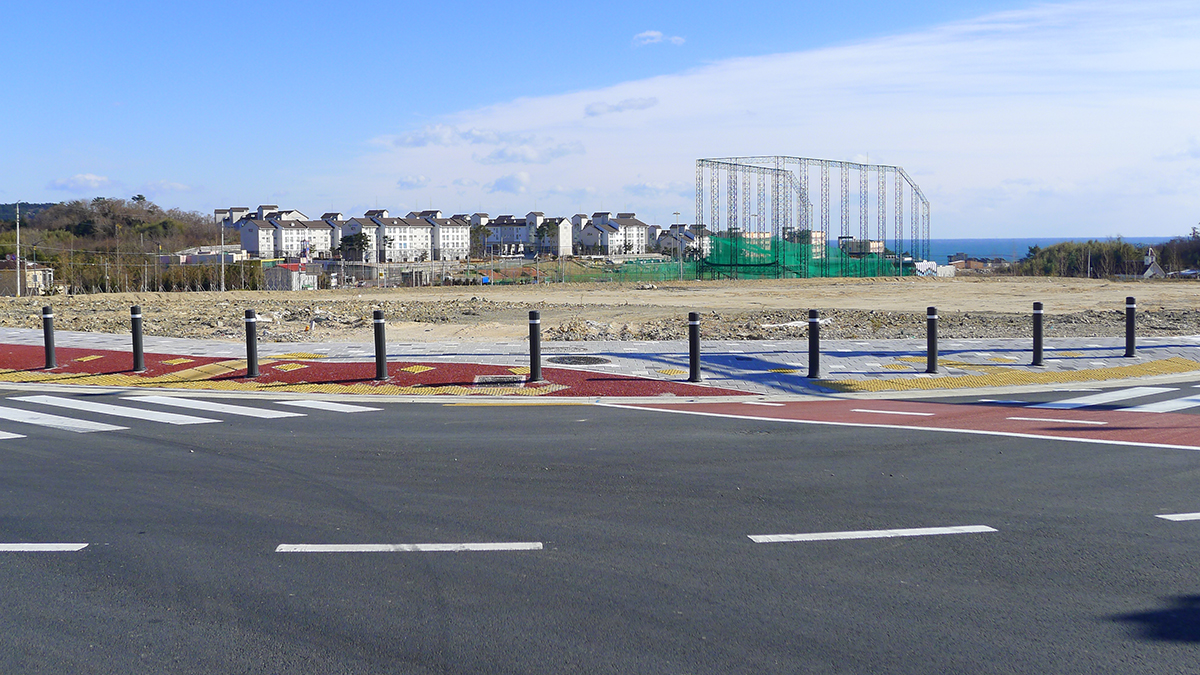

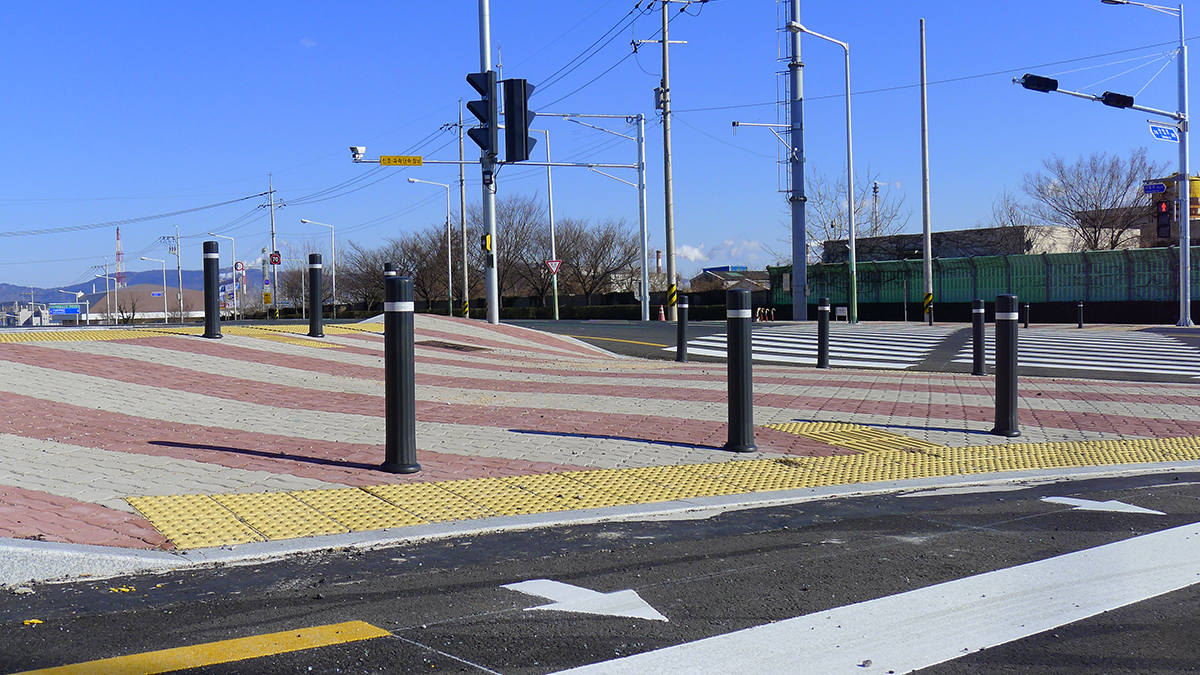

Installation photo
