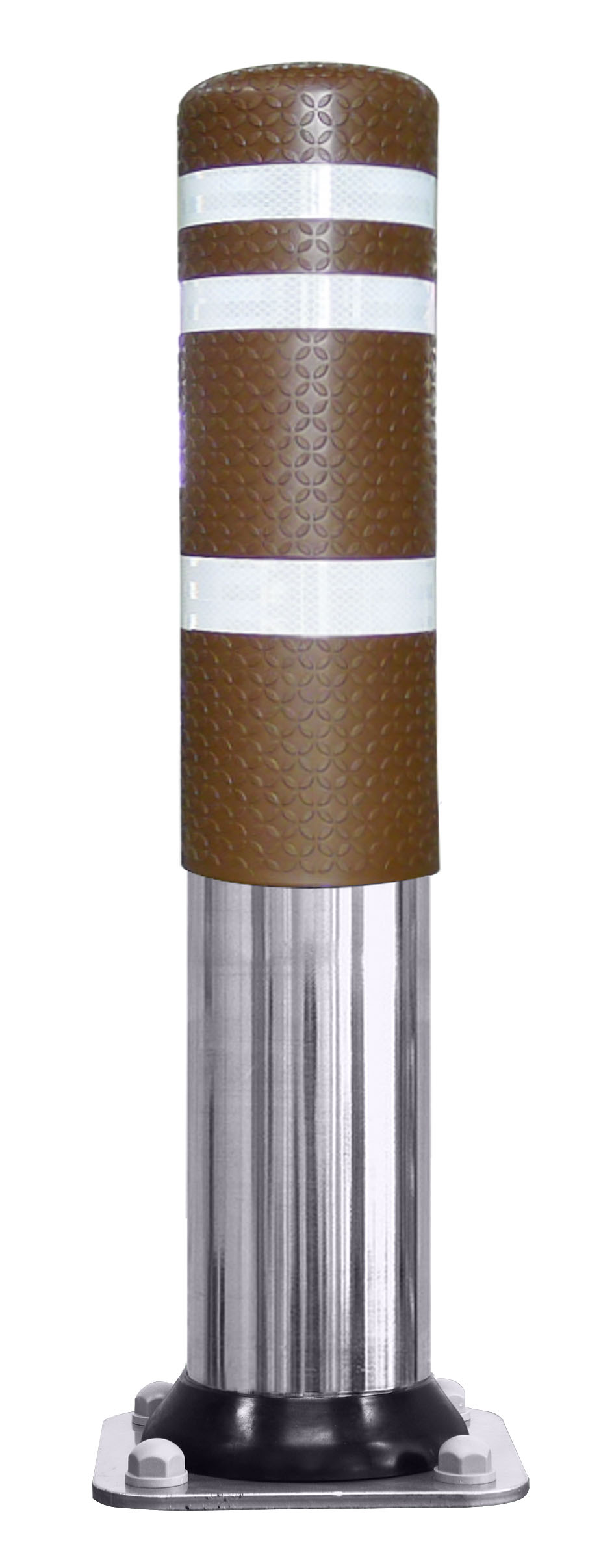

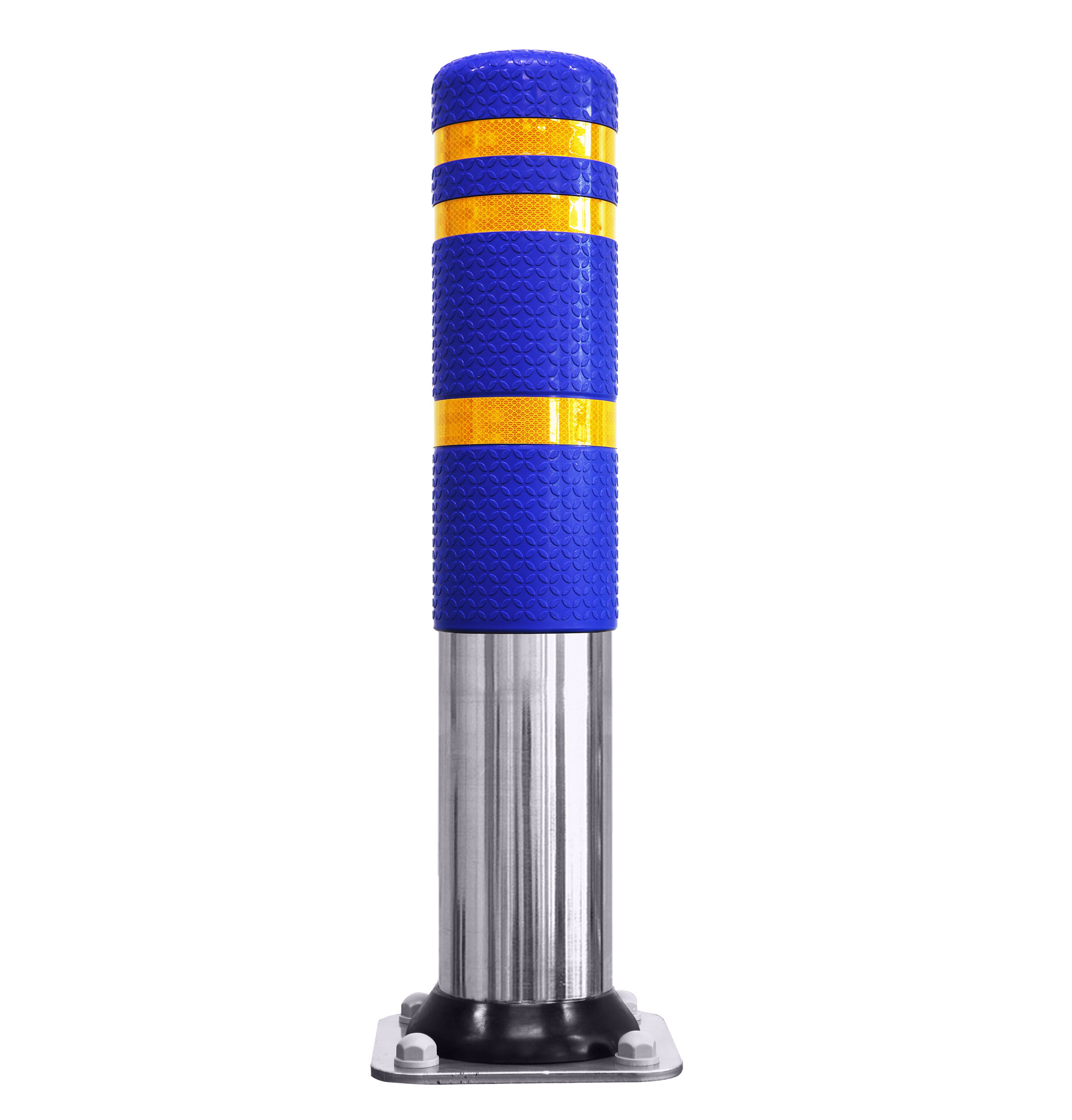

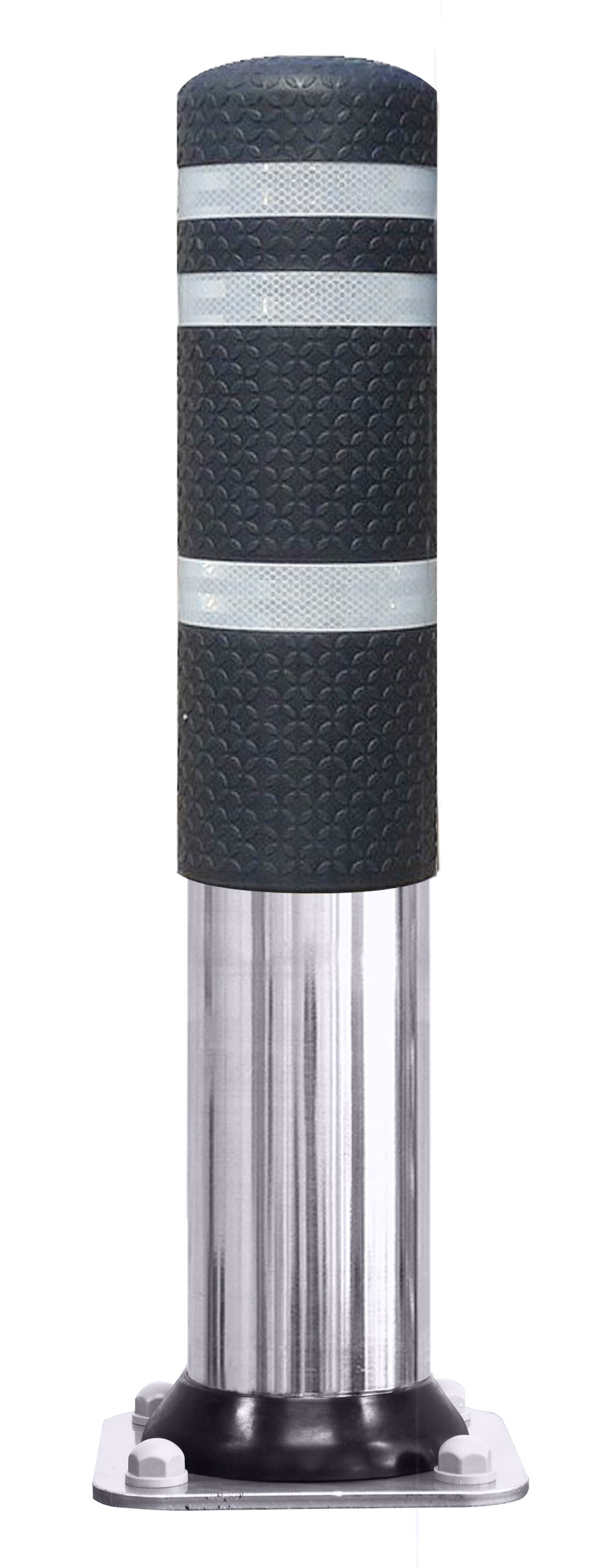

TI-23
TIROAD TI-23
Product name and specification
Product
TI-23
Standard
Φ153*800mm
Material
Stainless(STS)
Number
22568458
Product features
• In general, it is installed on the concrete or stone in an area where buried installation is difficult.
• It is installed in pedestrian-only areas such as a crosswalk and builds a safe pedestrian culture.
• When the upper tube is broken, or the shock absorbing layer(injection molding cap) is broken, or the product is buried along the road or relocated, it would be easy to replace the upper tube.
• Available in various colors, products can be customized suitably for individual conditions.

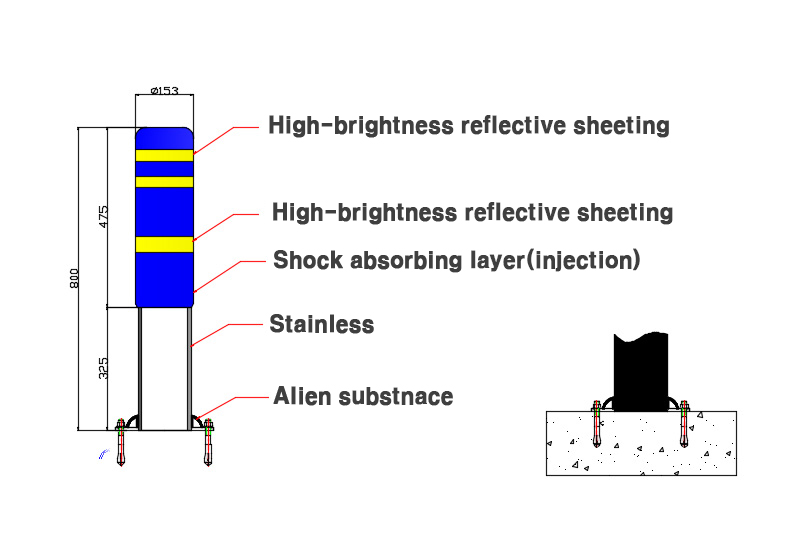

Drawing
TI-23 detail view
닫기
How to install
1. Do the marking for the anchor position by using the inking line.
2. Drill a hole by using a boring drill.
3. Insert the anchor bolt, and after that, insert the bollard.
4. Fix it to the anchor bolt by using the nut.

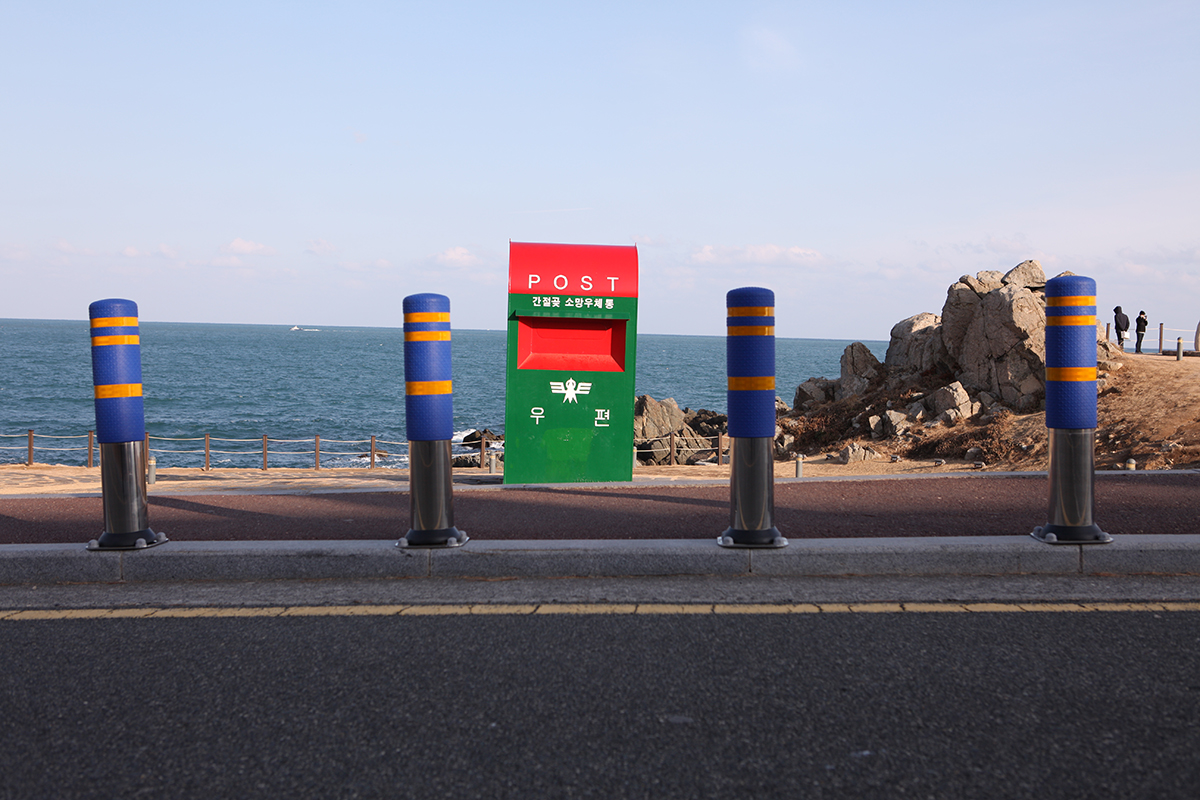

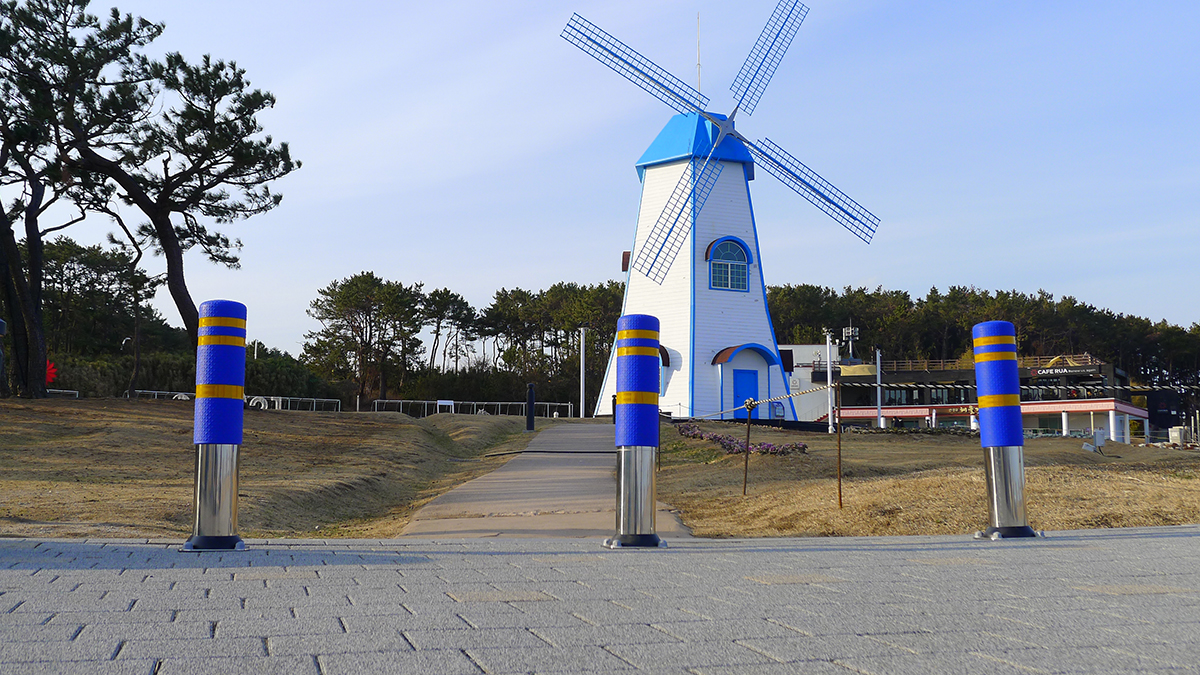

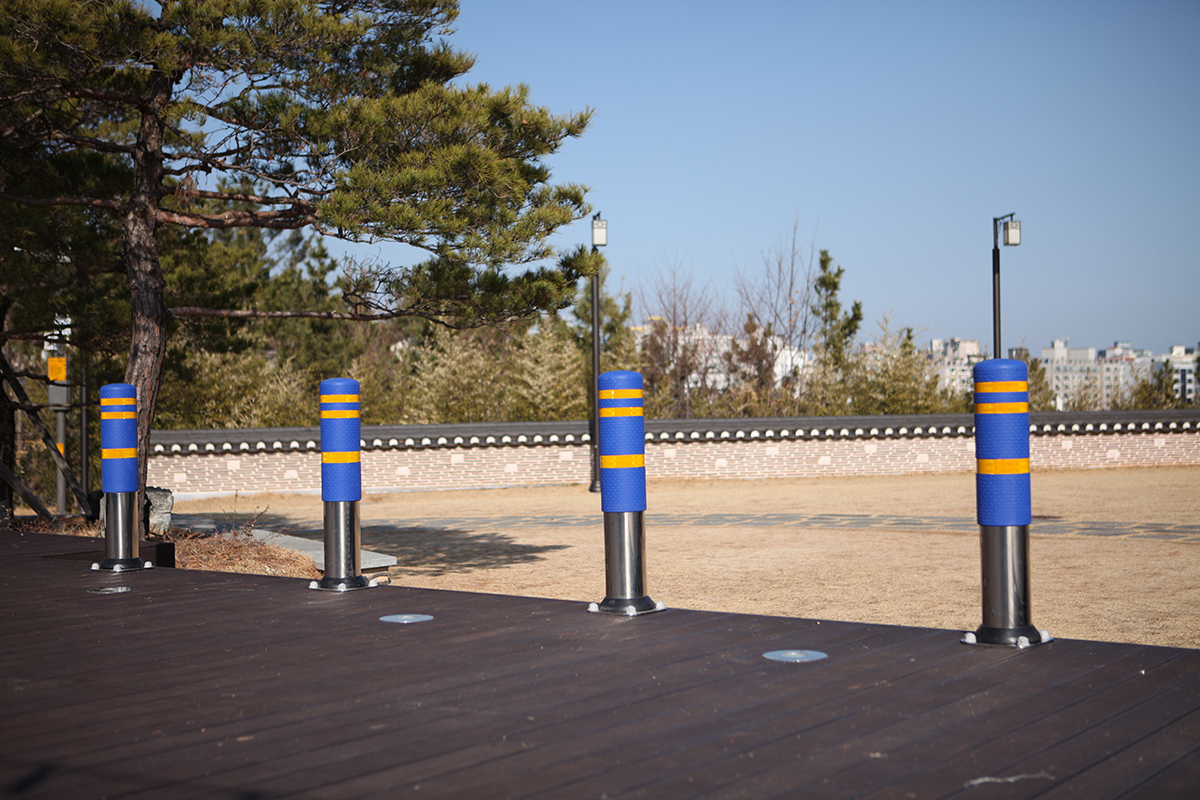

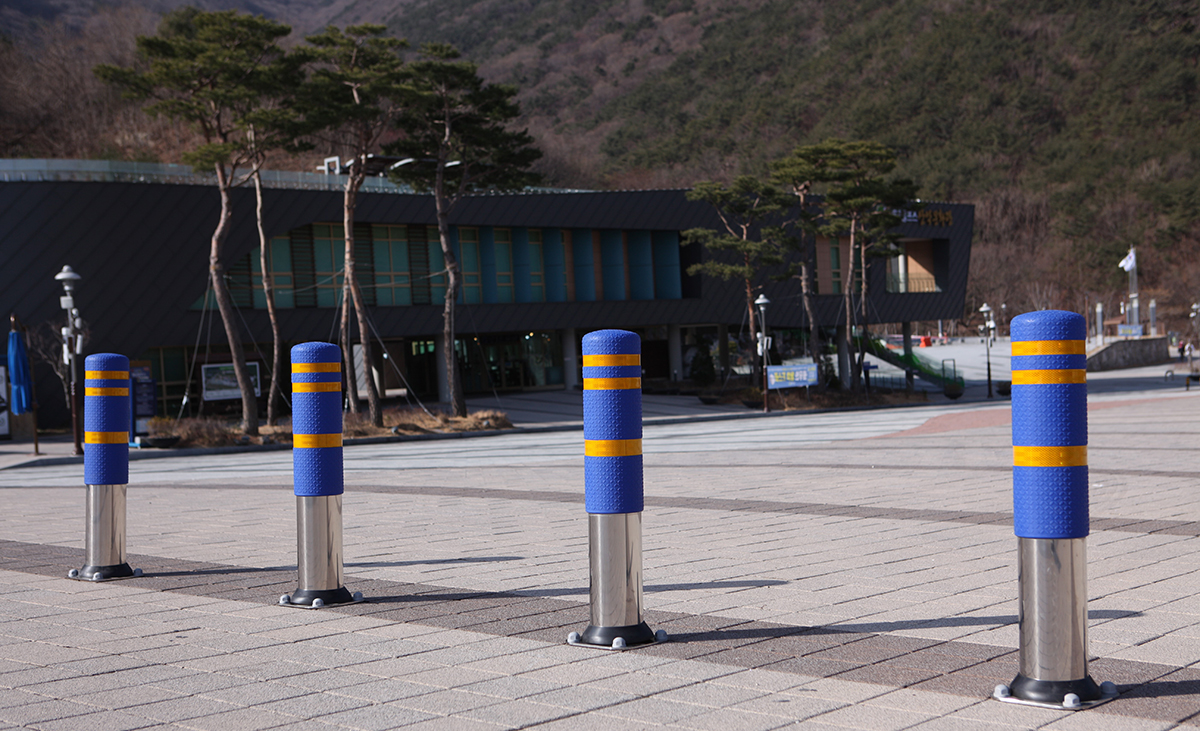

Installation photo
