TI-18
TIROAD TI-18
Product name and specification
Product
TI-18
Standard
Φ153*800mm
Material
Stainless(STS)
Number
22121987
Product features
- When the cap on the top is damaged, it can be replaced.
- Can be installed at the no-car zones, such as crosswalks, to help secure the safety culture for the pedestrians.
- Can be installed at the school zones and bike-only roads to function as a safety and protection facility.
- Available in various colors, products can be E4customized suitably for individual conditions.

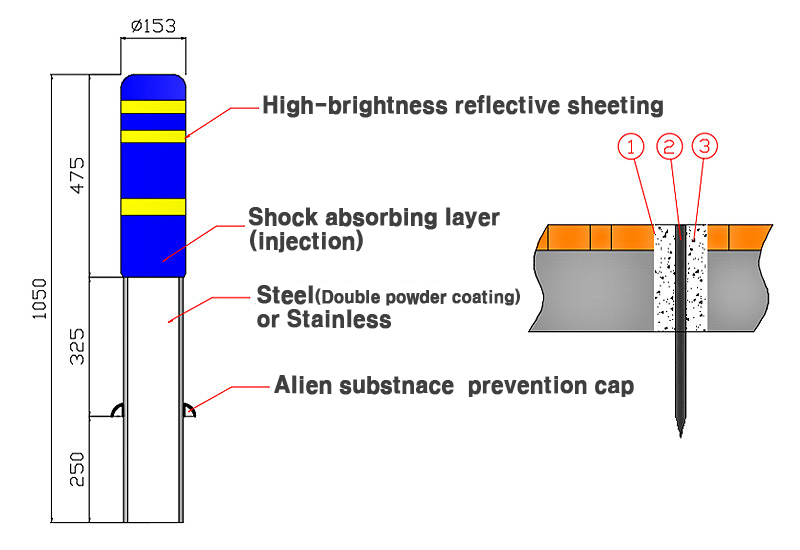

Drawing
TI-18 detail view
닫기
How to install
1. Drill a hole in the depth of 250mm using the boring drill.
2. Place concrete or mortar in the bored hole.
3.Press-fit the bollard into the concrete or mortar-placed point, and fix it while aligning it vertically with the bottom surface, then cure the concrete.

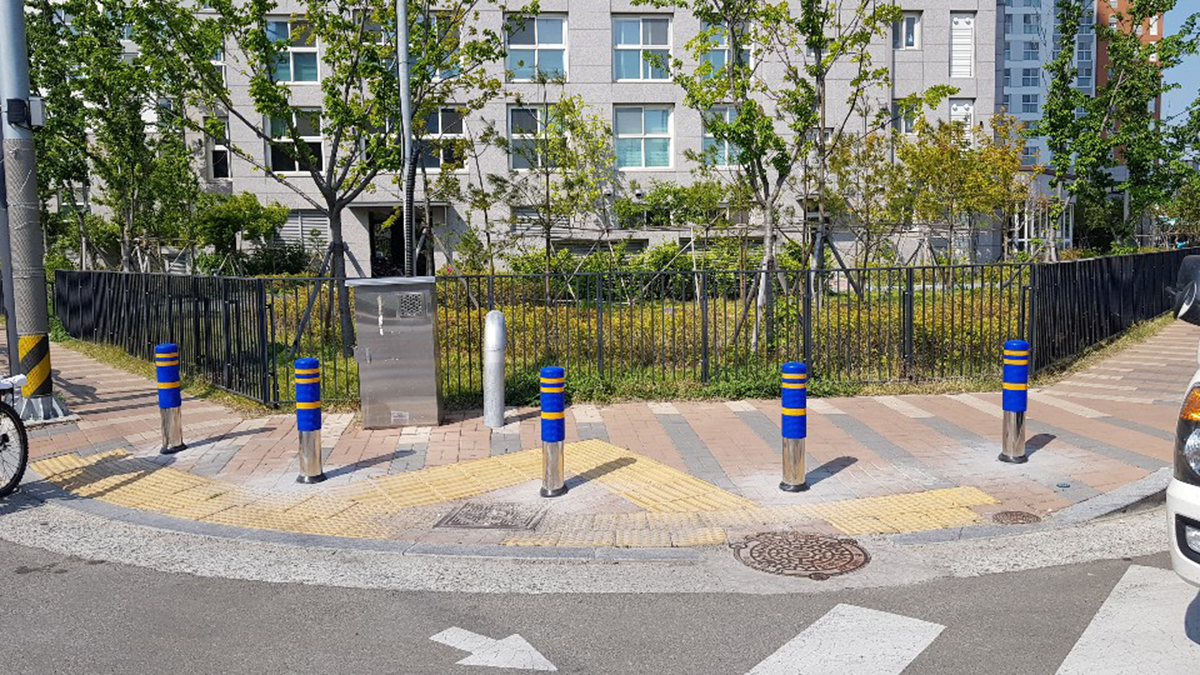

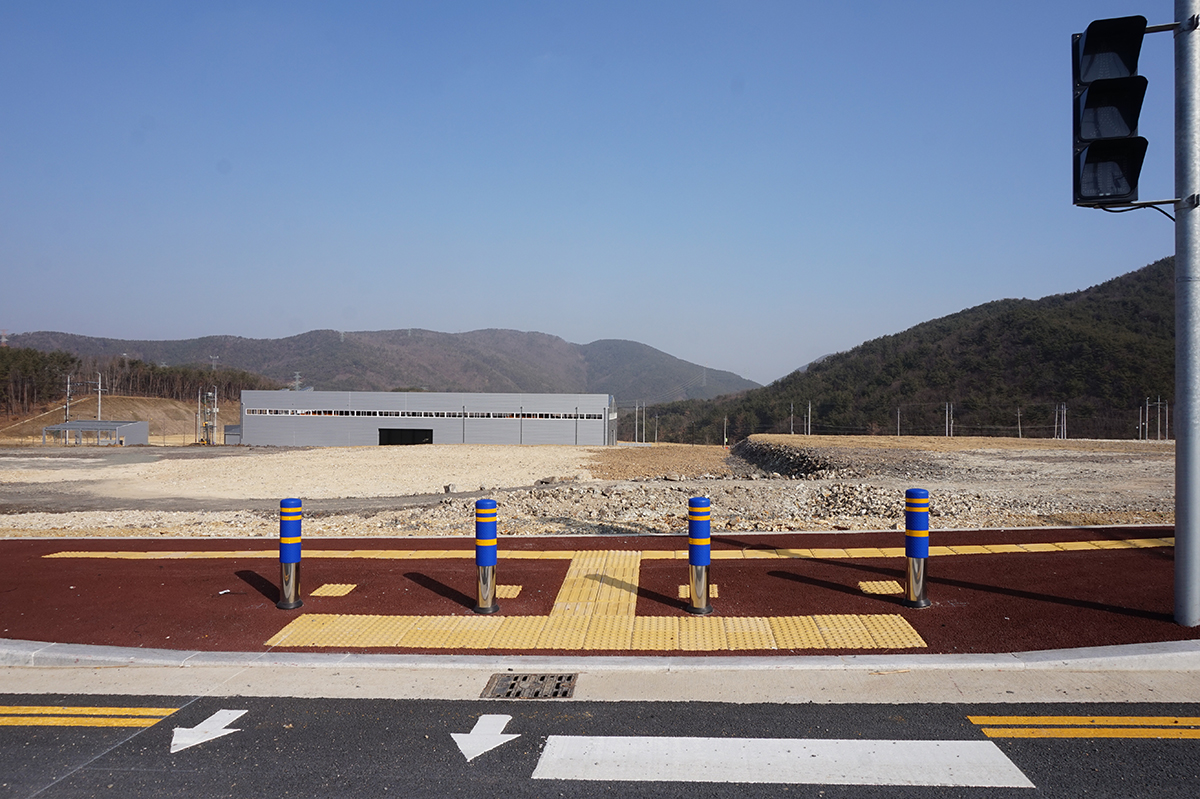

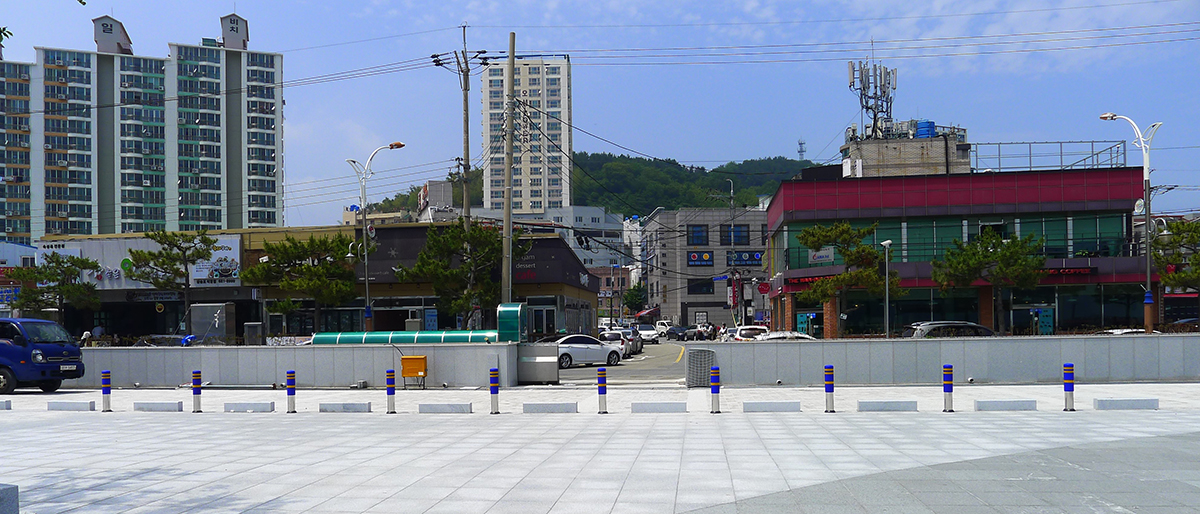

Installation photo
