TI-56-STS
TIROAD TI-56-STS
Product name and specification
Product
TI-56-STS
Standard
Φ101.6×W1200×H600mm
Material
Stainless steel (STS)
Number
24992688
TI-56-STS Download
Product features
- Can be installed on concrete or stone surfaces where an embedded installation is difficult.
- Provides a protective barrier in areas outside the roadway.
- The installation can be selected to suit the location and intended use.

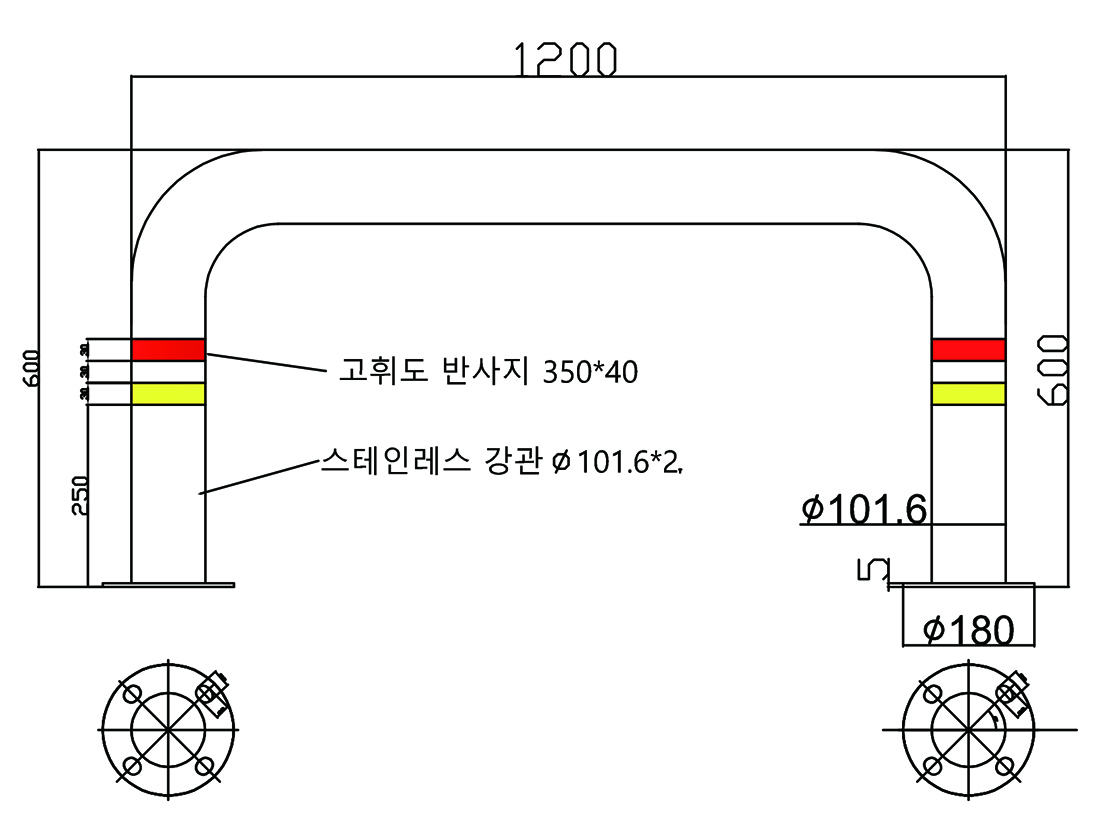

Drawing
TI-56-STS detail view
닫기
How to install
1. Mark the anchor positions at the installation location.
2. Drill the marked positions.
3. Insert the anchor bolts and place the U-shaped bollard over them.
4. Tighten the nuts on the anchor bolts.
