TI-922-STS
TIROAD TI-922-STS
Product name and specification
Product
TI-922-STS
Standard
Φ96×W1200×H600mm
Material
Stainless steel (STS)
Number
25732182
Product features

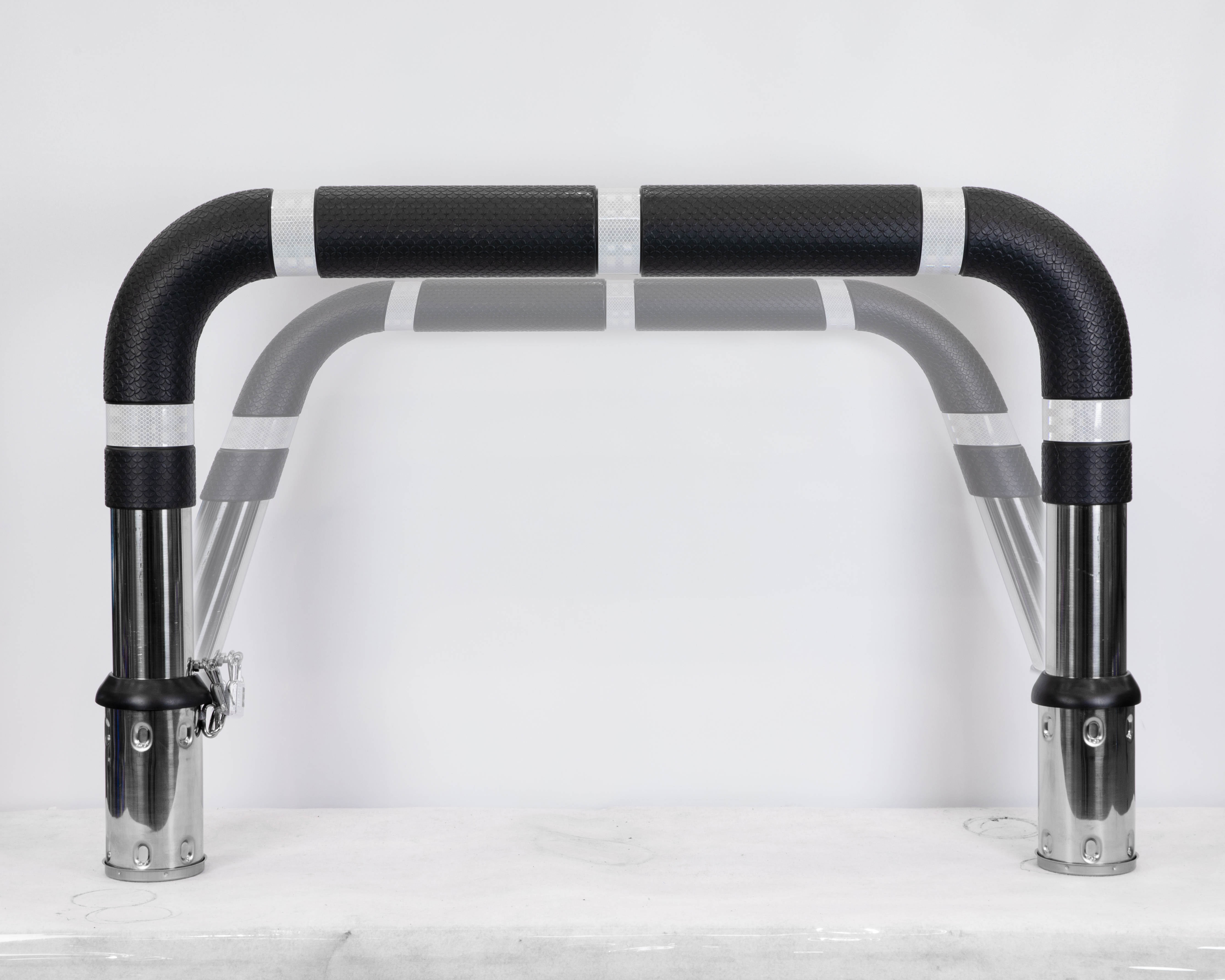

- A resilient assembly containing bolts and springs moves approximately 15 to 20 degrees when struck to help absorb impact.
- Restricts vehicle access during normal use and allows temporary vehicle access when required.
- Provides a protective barrier in school zones and along bicycle paths.

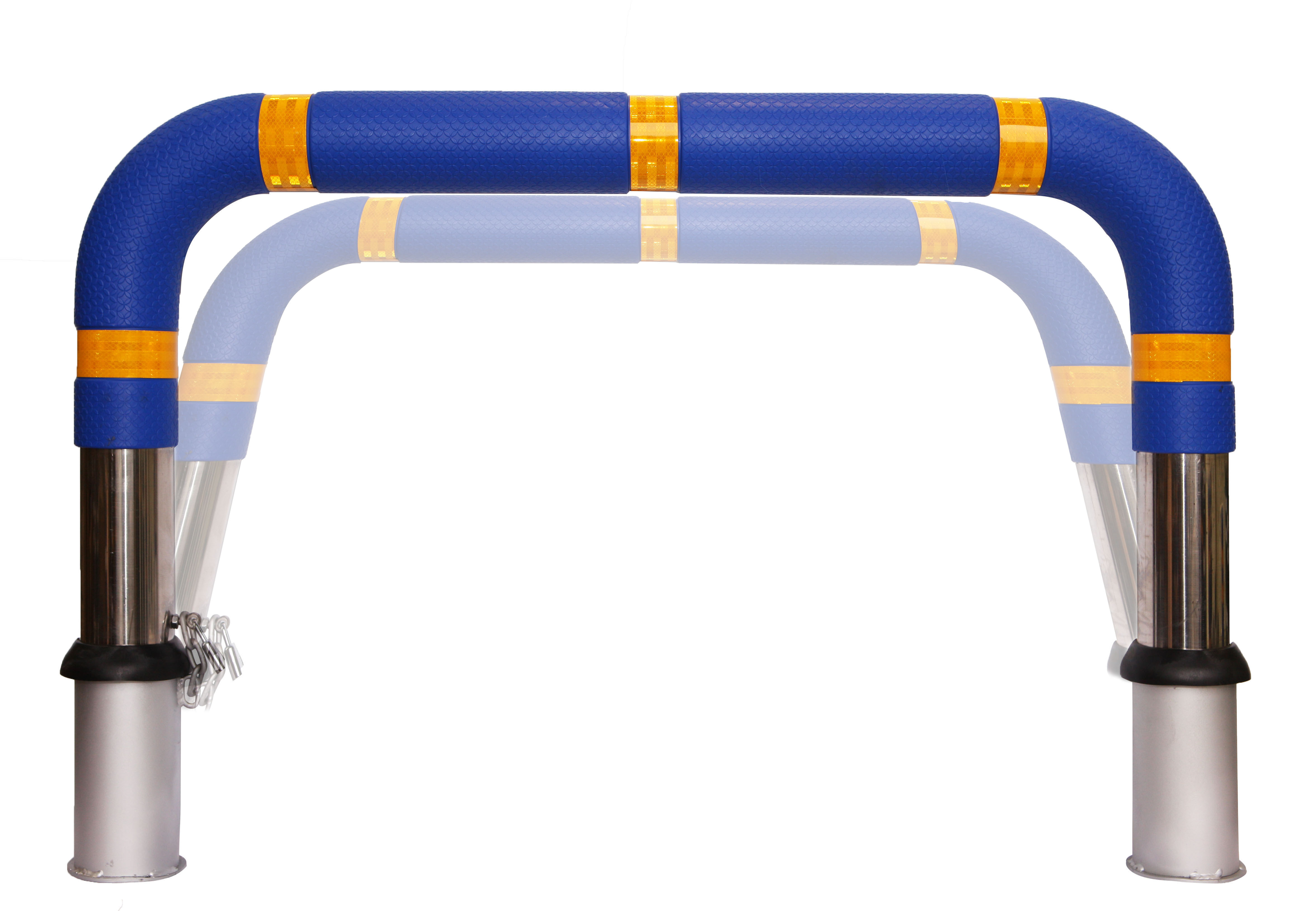

- Available in various colors to suit the surroundings.

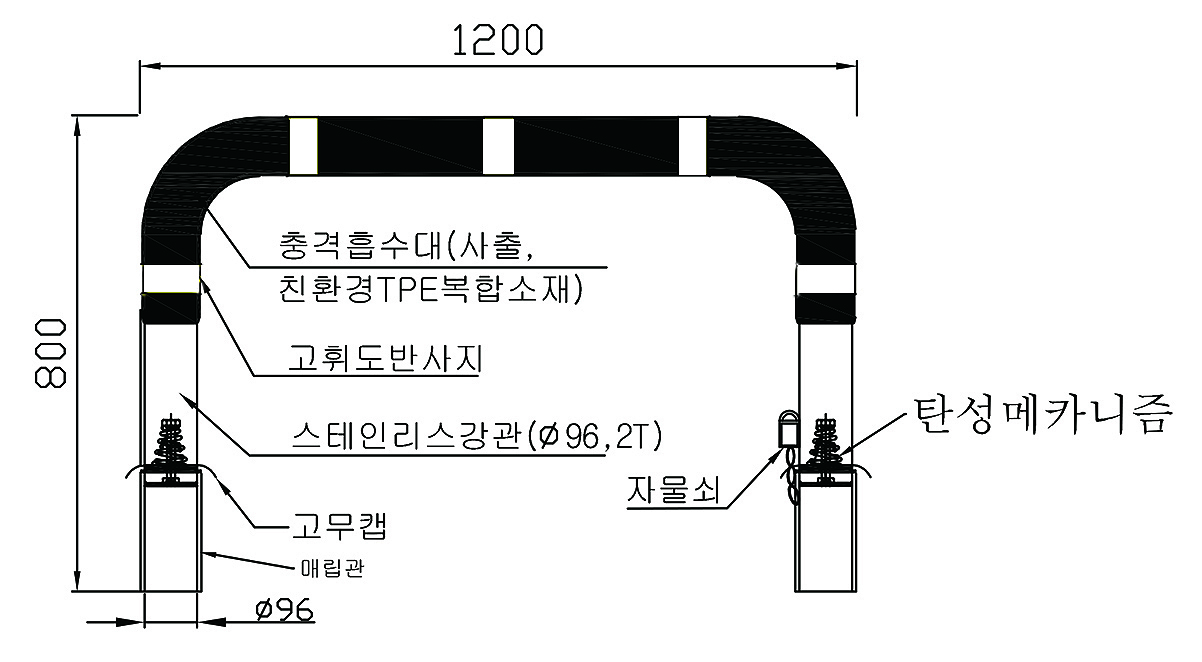

Drawing
TI-922-STS detail view
닫기
How to install
1. Drill holes to a depth of 200 mm.

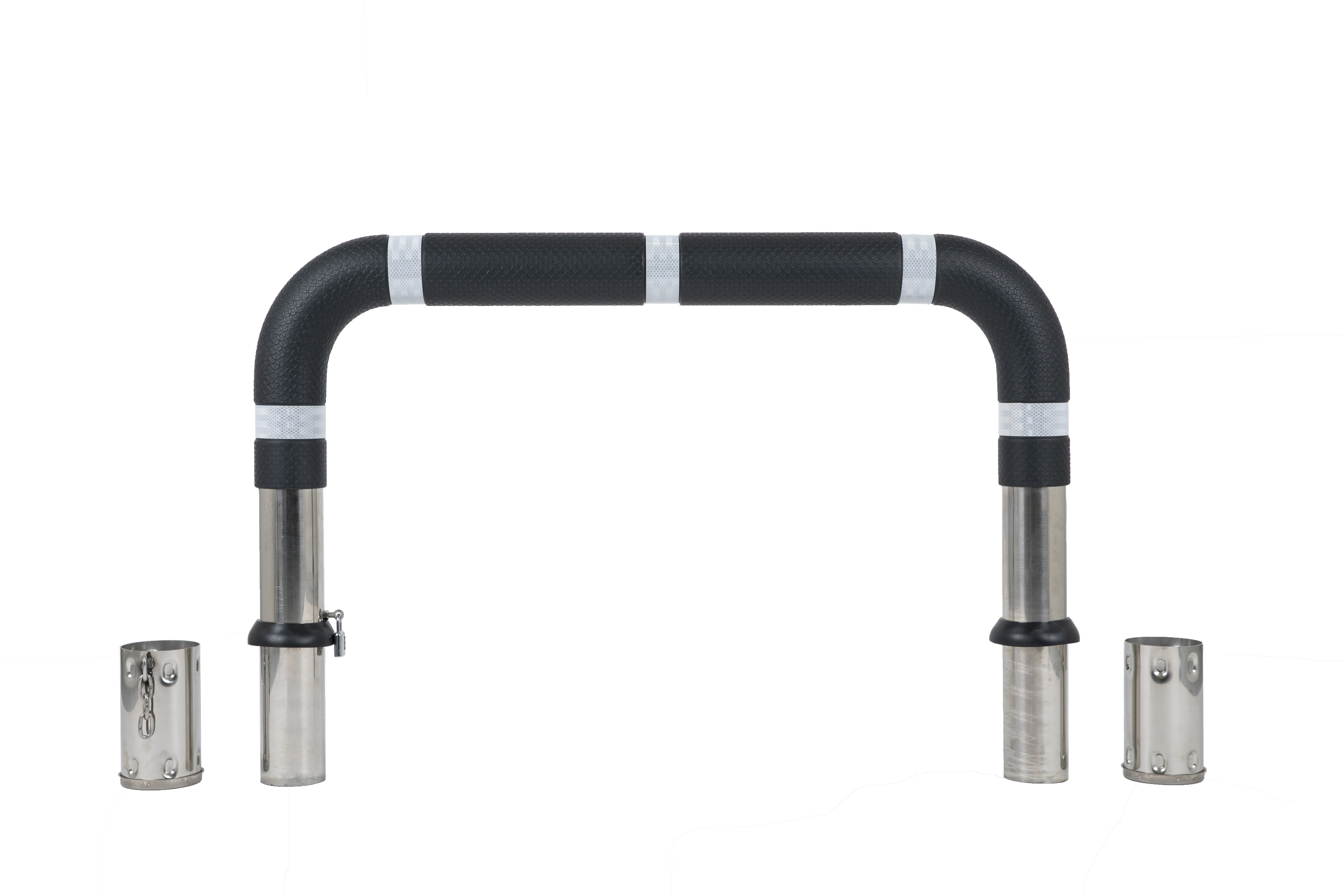

2. Insert the removable stainless-steel lower sleeves flush with the road surface.
3. Fill the holes with concrete or mortar.

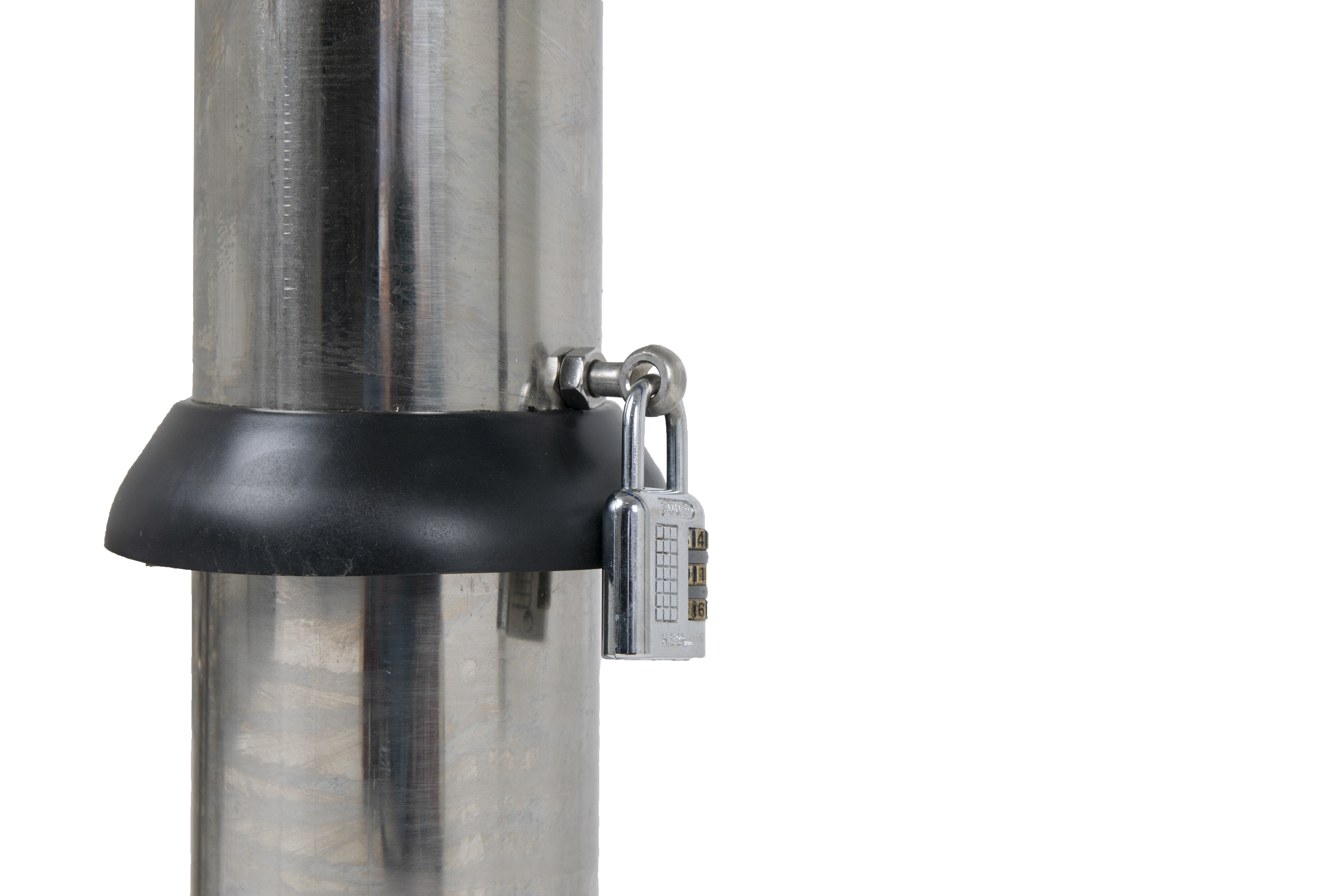

4. Insert the bollard into the lower sleeves, connect the upper and lower chains, and secure them with a padlock.
